Product information (Quickview)
Dimensions
| Width | 28 cm |
| Height | 11,5 cm |
| Length | 30,5 cm |
Weight
| Weight | 1,4 kg |
Additional properties
| Brand | Milwaukee |
| Parameter | Combined Multiparameter , Conductivity and TDS , pH , Thermometers (°C) |
Milwaukee MW805 4-in-1 pH/EC/TDS/Temp. Combo Meter with ATC
Article number:
896147
€619.40
Please log in to receive your conditions.
Payment
Delivery & Shipping
Consultation
Quick info
Payment methods
Request individual offer (from 5 pcs.)
For larger order quantities, we will be happy to prepare an individual offer for you.
Quotation as PDF
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Delivery & Shipping
- Standard shipping: 3–5 business days within Germany
- Express shipping available on request
- International delivery to EU and Switzerland
- No shipment of Heyl products to Spain, France and Portugal
- Dangerous goods shipping according to ADR regulations
- 3% online discount on HEYL, HORIBA, JUMO and MILWAUKEE products
Personal consultation
Our experts will be happy to advise you on water treatment, measurement technology and sterile processing.
Technical consulting for industry, laboratory and building technology — your specialist for water analysis and process water treatment.
Contact formQuick info
| Measurement parameters: | pH | Conductivity | TDS | Temperature |
| Measuring range: | -2.00 - 20.00 pH | 0 - 4000 µS/cm | 0 - 2000 ppm (mg/L) | -20.0 to 120.0°C (-4.0 to 248.0°F) |
Product information (Quickview)
Dimensions
| Width | 28 cm |
| Height | 11,5 cm |
| Length | 30,5 cm |
Weight
| Weight | 1,4 kg |
Additional properties
| Brand | Milwaukee |
| Parameter | Combined Multiparameter , Conductivity and TDS , pH , Thermometers (°C) |

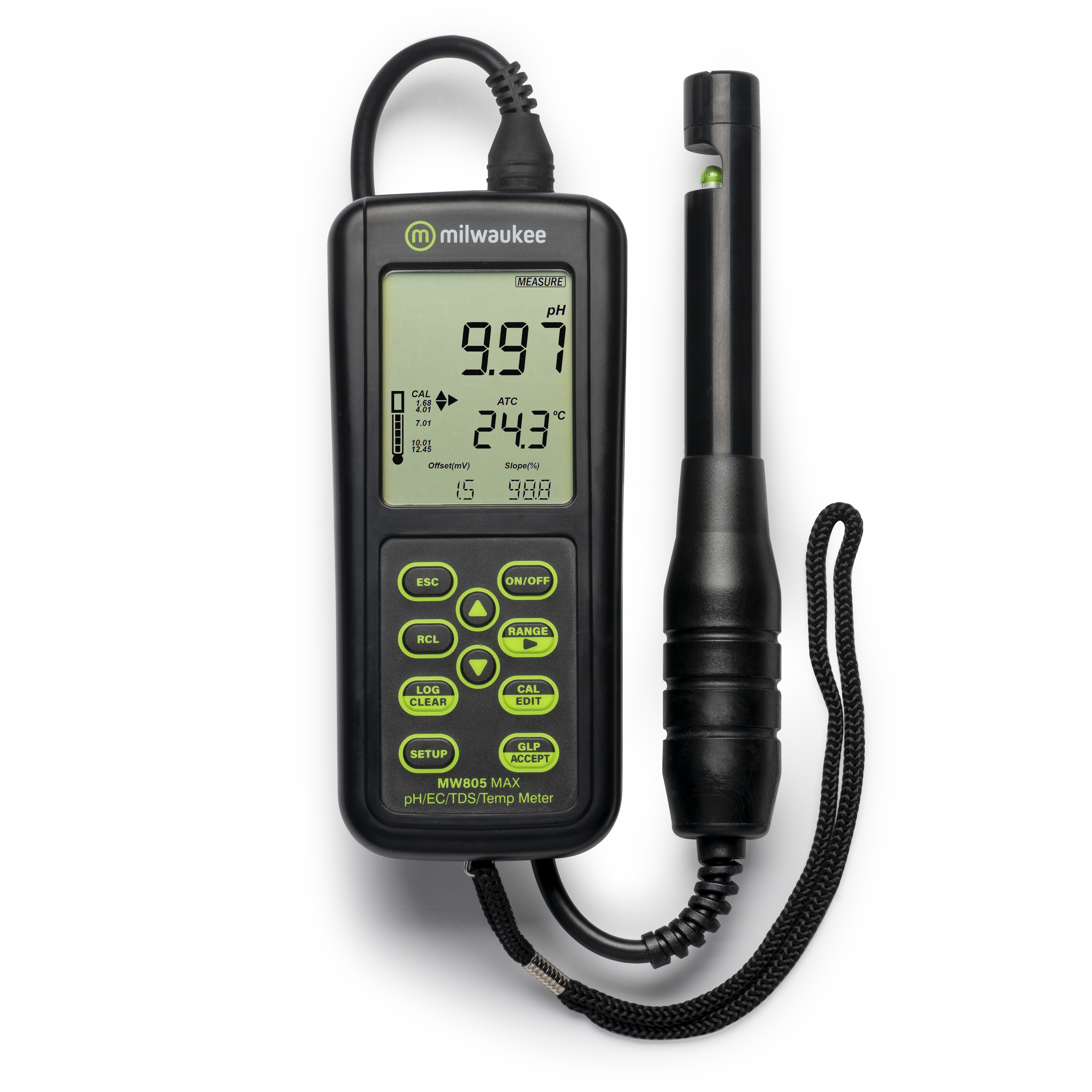

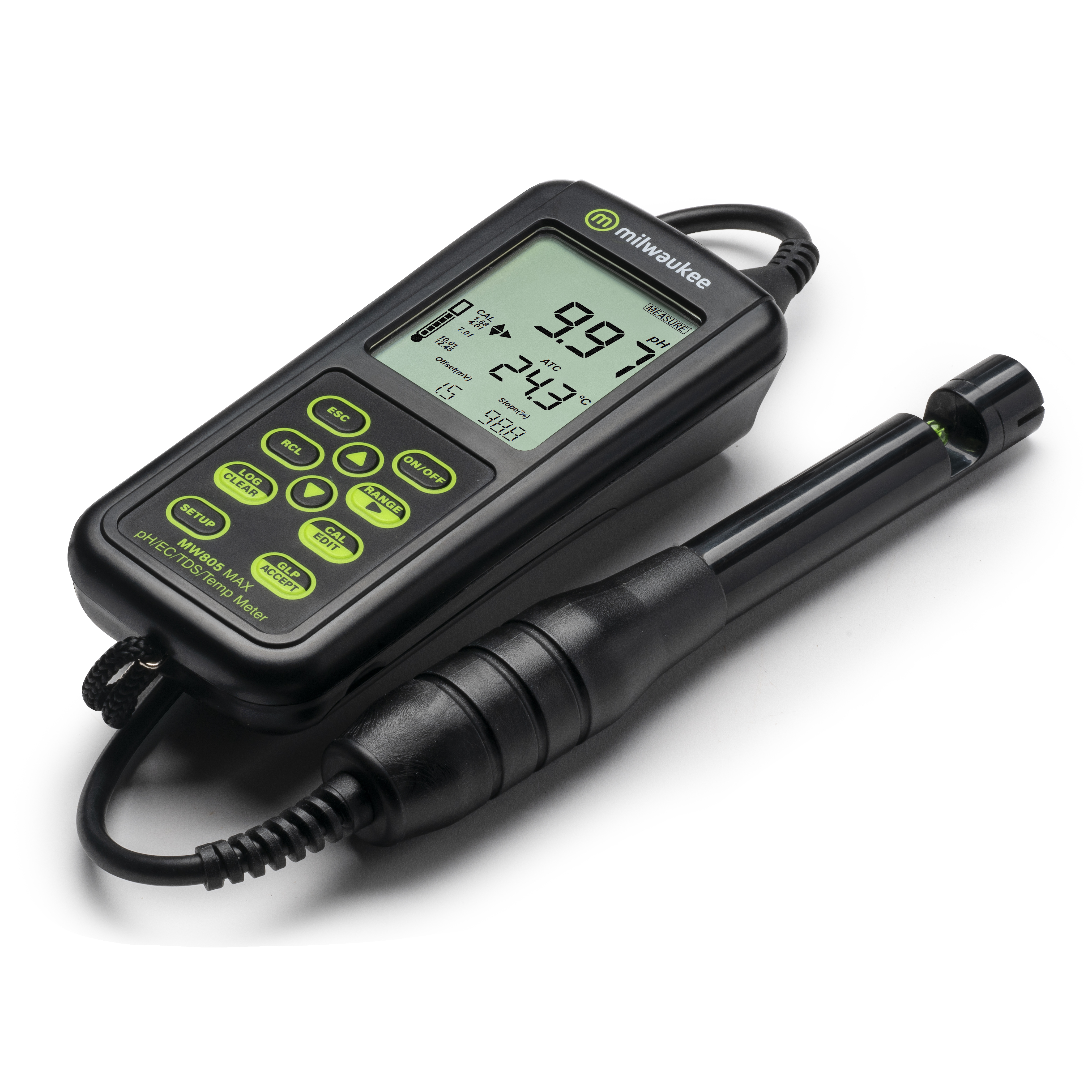

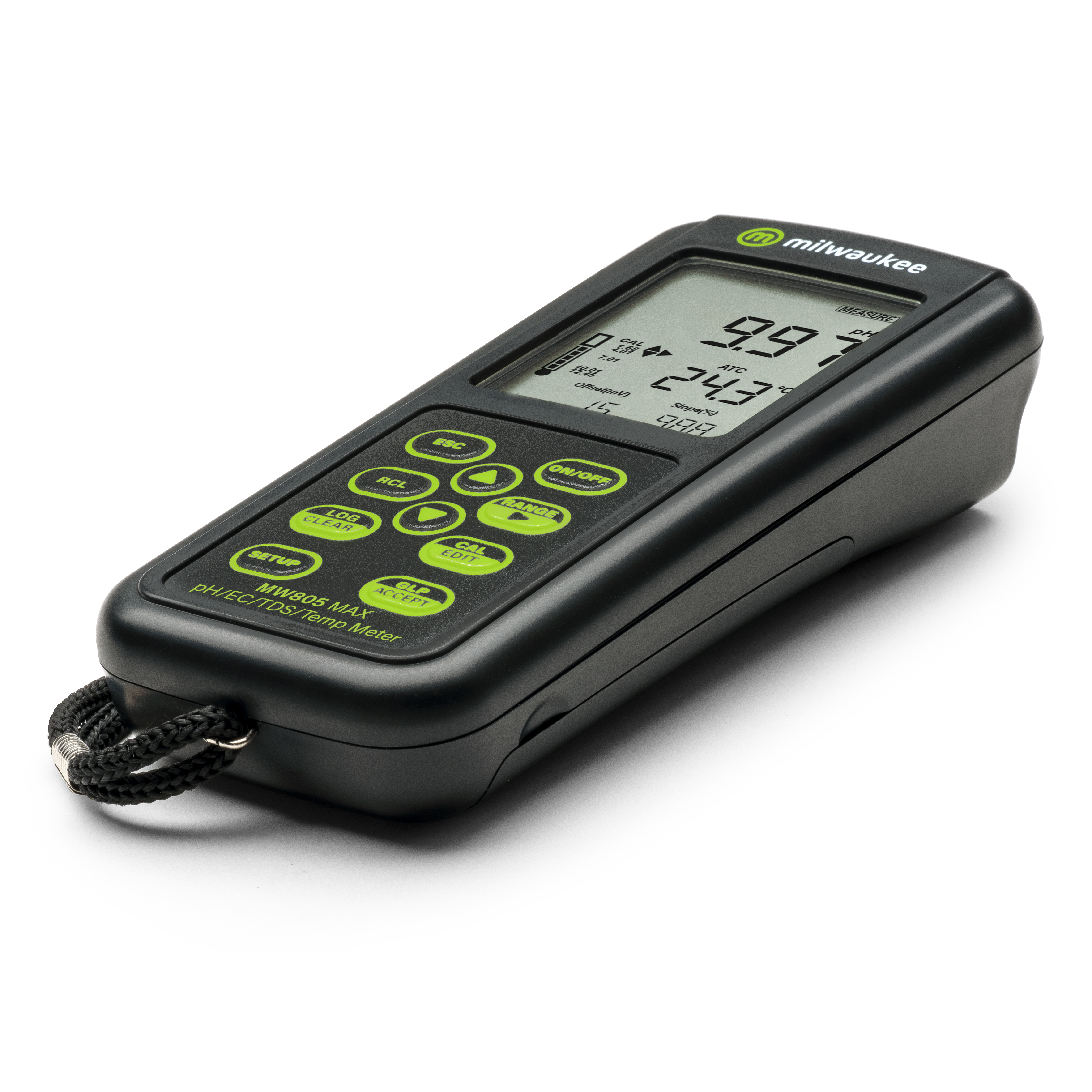

Product information "Milwaukee MW805 4-in-1 pH/EC/TDS/Temp. Combo Meter with ATC"
This MW805 MAX pH/EC/TDS/Temp. 4-in-1 combo meter allows you to measure pH, EC (conductivity), TDS and Temp. with a single meter and one single probe.
DESIGN FEATURES
- pH, conductivity / nutrient EC, TDS (ppt) with automatic temperature compensation
- Selectable TDS factors from .40 to 0.8; defaulet value 0.50
- Stability indicator prompting the user when the readings stabilize
- Dedicated GLP key to store and recall data on system status
- A replaceable, Amplified Combination pH/EC/TDS/Temp probe with a single 1 meter cable for easy use (MA852D/1 probe included)
- A cloth junction on the pH sensor to reduce contamination when measuring fertilizer solutions. Gel filled for long lasting measurments
- A light weight and portable form factor at just 260g with battery and just over 7,62cm wide
- A large easy to read display
- Factory calibration for Temperature and simple, highly accurate, single cell automatic, one point calibration for EC and an automatic up to 5 point calibration for pH
- IP 67 rated rugged case built for field or lab applications
- Specialized design for hydroponic, aquaponic, and greenhouse growers
Technical specifications
pH Range: -2.00 to 20.00 pH
EC Range: 0 to 4000 µS/cm
TDS Range: 0 to 2000 ppm (mg/L) | up to 3200 ppm (mg/L) with TDS 0.80 factor
Temperature Range: -20.0 to 120.0°C / -4.0 to 248°F
pH Resolution: 0.01 pH
EC Resolution: 1 µS/cm
TDS Resolution: 1 ppm (mg/L)
Temperature Resolution: 0.1°C / 0.1°F
pH Accuracy: ±0.01
EC/TDS Accuracy: ±2% Full Scale
Temperature accuracy: ±0.5°C / ±0.9°F
Calibration pH: Automatic up to 5 - point pH, 7 Standard Calibration Buffers: pH1.68; 4.01; 6.86; 7.01; 9.18, 10.01; 12.45 and 2 Custom Buffers
Calibration EC/TDS: Single Cell Factor Calibration; 2 Standards: 84 μS/cm; 1413 µS/cm / One- point Offset: 0.00 µS/cm
Temperature Calibration: Factory Calibrated
Temperature Compensation: Automatic (ATC) from -20 to 120°C (-4 to 248°F) | Manual (MTC) from -20 to 120°C (-4 to 248°F)
Conductivity temperature coefficient: 0.00 to 6.00 % /ºC (EC & TDS only) | Default value: 1.9 %/ºC
TDS Factor: 0.40 to 0.80; default value: 0.50
Logging Memory: Up to 1,000 log records (stored in up to 100 lots) | On demand, up to 200 logs | on Stability, up to 200 logs | Interval logging, up to 1,000 logs | Parameter-Specific log storage location
PC connectivity: 1 micro USB port
Battery Type: 3x 1.5V Alkaline AA batteries (included) | Approximately 200 hours of use
Environment: 0 to 50°C / 32 to 122°F; max RH 95%
Dimensions Meter: 200 x 85 x 50 mm
Auto-off: After 10 minutes of non-use
Casing: IP67 protection level
Weight Meter: 260g
Dimensions Packaging: 305 x 280 x 115 mm
Weight Packaged: 1.44 kg
Probe Specifications: MA852D/1 Amplified pH/EC/TDS/Temp Probe (included)
Range: pH 0 to 13 | Temperature 0.0 to 60.0°C (32.0 to 140.0°F)
EC electrodes: 2x graphite
Reference: Single, Ag/AgCl
Junction: Cloth
Electrolyte (pH): Gel
Body: ABS

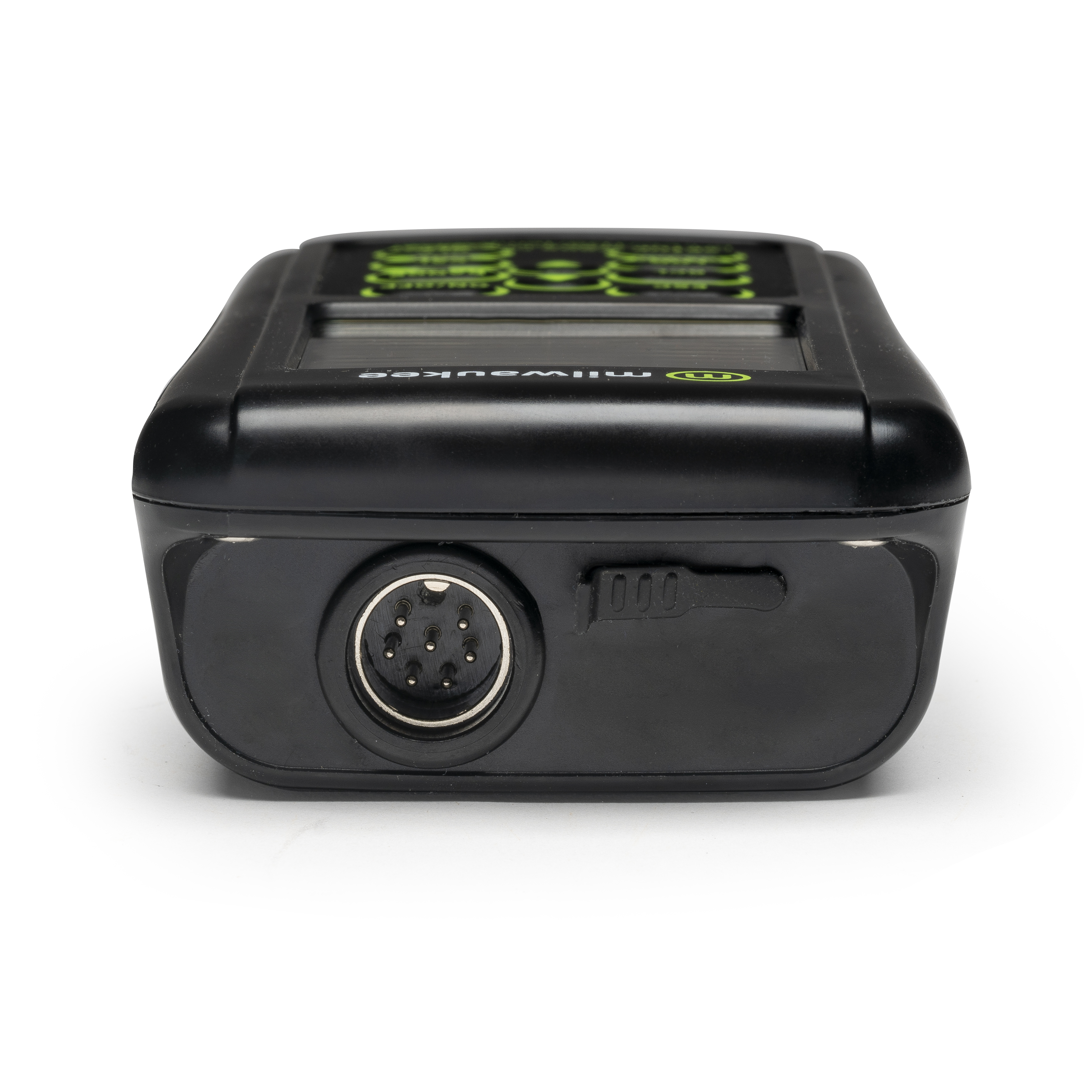

Connection: DIN
Cable: 1m
