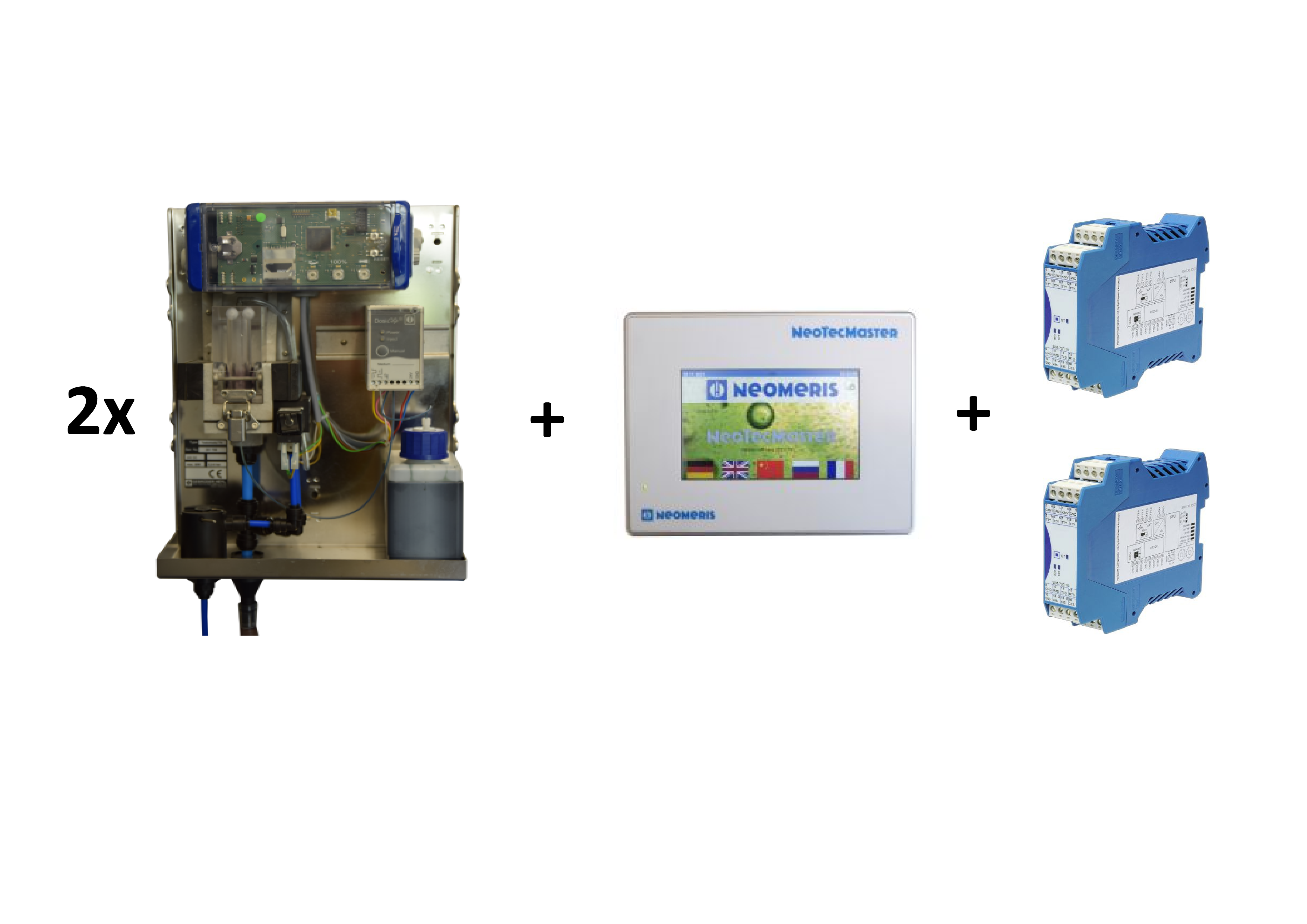

The Testomat® LAB TH devices determines the water hardness (residual total hardness) fully automatically by use of titration and has been developed for monitoring the water quality of water treatment plants, drinking water plants, industrial boilers and for monitoring process water, here in a package for monitoring two measuring points. In view of the fact that the Testomat® LAB TH total water hardness analysers were developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you both Testomat® LAB TH analysis devices in combination with the NeoTecMaster®, which was specially developed by our company, as a complete solution at a preferential price. The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input on the NeoTecMaster® , in this case the RS232 interface and one additional RS232 interface on the included NeoTec Slave module , are used by both Testomat® LAB TH to display the measured values, the trend and the status messages on the 5 inch screen. In addition to the on board RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments). The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required, thus enabling the future realisation of further control concepts in a flexible manner. A module that fundamentally expands the range of functions and is already included in the scope of delivery is our NeoTec slave relay module with which you can add potential-free relay contacts to the overall system. You can freely assign these to the incoming measurement signals and thus, for example, implement limit value-related control concepts, as well as output measurement-related messages. Further advantages of the NeoTecMaster:  Simple operation Integration of the Testomat® world of instruments, here in conjunction with two Testomat® LAB TH Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housing  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation) Available as built-in or surface-mounted variant Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format In addition, there are proven Testomat® LAB functionalities:  Optimised water detection based on an optical measuring method  RS232 interface for transmission of measured values and error messages  Import and export of settings (basic programming)  Logging of measurement data and messages/alarms via integrated SD card or optionally usable SDHC card (2GByte)  Firmware update via SD card  Execution of parameterisation by means of SD card or "Service Monitor" software via mini-USB (on the unit side) to USB 2.0 (e.g. PC/notebook)  Multilingual software menu in German, English, French, Dutch, Portuguese  Integrated self-test with continuous monitoring  Automatic venting of the indicator line  Compact design Performance profil Testomat® LAB TH:  High-precision titration by means of piston metering pump  Reliable and low-maintenance operation  Minimal indicator and water consumption  Analogue output 4 - 20 mA for transmission of measured values  Programmable hardness unit in °dH, °f, ppm CaCO3, mmol/l  Collective alarm output  Indicator quantities: 500 ml bottles  Analysis trigger:  - Automatic interval operation (interval pause adjustable from 0-255 minutes)  - External analysis input (start/stop)  - Manual start Optional accessories available:  OLED display  Protective cover to increase the IP protection class of the Testomat® LAB TH devices  NeoTecMaster instrument cover Frequently asked questions What is this package with two devices particularly suitable for? For simultaneous monitoring of two measuring points. Can I monitor both measuring points centrally? Yes, all values are displayed together in a clear manner. What does using two devices at the same time bring me? More control over various areas or processes. How are the measurement data from the two devices displayed? Together on a central display with history. Can I evaluate the two measuring points independently of each other? Yes, each measuring point is recorded and displayed separately. Is the system suitable for larger plants? Yes, especially with multiple water flows or processes. Can I also respond automatically with the system? Yes, controls can be implemented via relays. How does the system help me in daily operations? It provides a better overview and reduces manual effort.

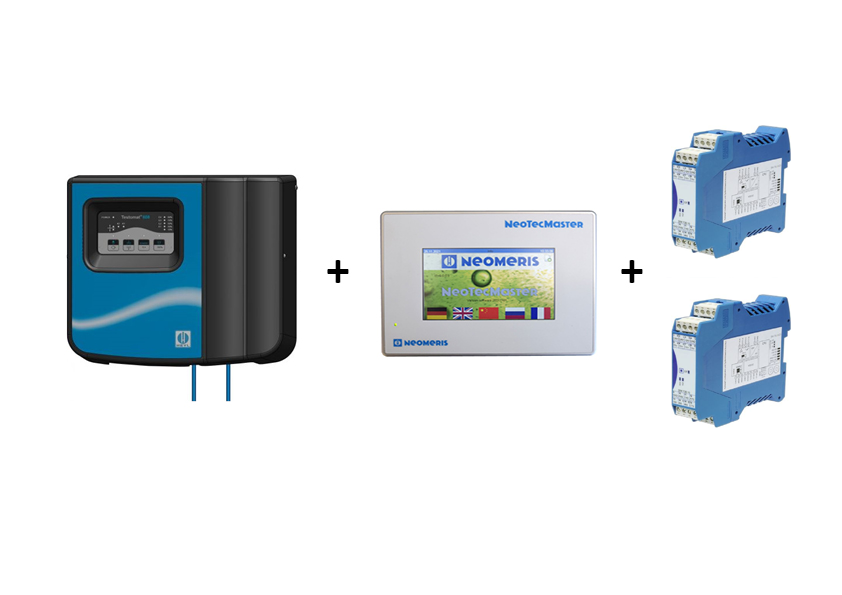

The Testomat® 808 is a compact analyser for online measurement of water hardness according to the principle of "limit value monitoring with colour change" in the measuring range 0.02 - 5 ° dH (0.4 - 89 ppm). Applications of the continuous residual hardness monitoring are e.g.: Reverse osmosis systems, boiler feed water supply Soft water for commercial purposes, ultrapure water systems.  In view of the fact that the Testomat® 808 is suitable for use in multi-parameter systems due to its 4-20mA signal output, we hereby offer you the Testomat® 808 in conjunction with the NeoTecMaster® Multicontroller, which was specially developed by our company, as a package solution at a preferential price.  The 4-channel NeoTecMaster® Multicontroller included in this package enables the processing of up to four measurement signals. Via the 4-20mA NeoTec slave input module connected to the NeoTecMaster®, the data is transmitted to the NeoTecMaster® and used to display the measured value, the trend and the status messages on the 5-inch screen. In addition, the NeoTecMaster® has an RS232 interface as well as a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments).  The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required. This allows the future realisation of further control concepts in a flexible way.  Two modules which fundamentally extend the range of functions and are already included in the scope of delivery are our NeoTec slave relay module and the 4x 4-20mA input module. This allows you to add potential-free relay contacts to the overall system and to integrate and visualise further system technology such as sensors via the 4x 4-20mA input module. You can freely assign the relay contacts to the incoming measurement signals and thus, for example, implement simple limit value-related control concepts as well as output measurement value-related messages.  Further advantages of the NeoTecMaster:  Simple operation Integration of the Testomat® device world, here in connection with the Testomat® 808  Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® enclosure  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation)  Available as built-in or surface-mounted variant  Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are the proven functionalities of the Testomat® 808:  Indication of limit value undershoot or overshoot: green / red LED  Modern indicator pump system  Automatic measuring sequence with low water consumption  Direct error and indicator quantity display  Internal and external flushing of the measuring chamber by manual control  Control of an external flush valve  Three potential-free relays for: External flush valve control Limit value evaluation External control and / or alarm processing Safety check for 72-hour operation without supervision  Indicator quantities: 100 and 500 ml bottles  4 - 20 mA interface for defined status and error messages  RS 232 interface for firmware updates  General information Water connection and operating pressure: Depending on unit version: 0.3 - 1 bar / 0.3 x 105 to 4 x 105 Pa 1 - 4 bar / 1 x 105 to 4 x 105 Pa (from 4 to 8 bar, a pressure reducer must be used (special accessory))  Water inlet: opaque hose with 6 mm outer diameter/4 mm inner diameter  Water outlet: hose with 6 mm outer diameter/4 mm inner diameter  Water temperature: 10 to 40 °C From 4 bar, a separately available pressure reducer must be used. Please use only the indicators approved for Testomat® 808! Optional accessories:  NeoTecMaster unit hood Frequently asked questions How does the Testomat® 808 work for hardness measurement? With a color change for easy limit value monitoring. For which applications is this device particularly suitable? For osmosis systems, ultra-pure water systems, electroplating, soft water for commercial purposes, and boiler systems. How do I recognize a limit value exceedance? Through a clearly visible LED display. Can I integrate additional sensors into the system? Yes, easily possible with the right modules. How does the system support me in monitoring the installations? By centrally displaying values and messages. How flexible is the system's expansion? It can be modularly adapted and expanded. What makes this package particularly practical in everyday life? It combines simple measurement with central control.

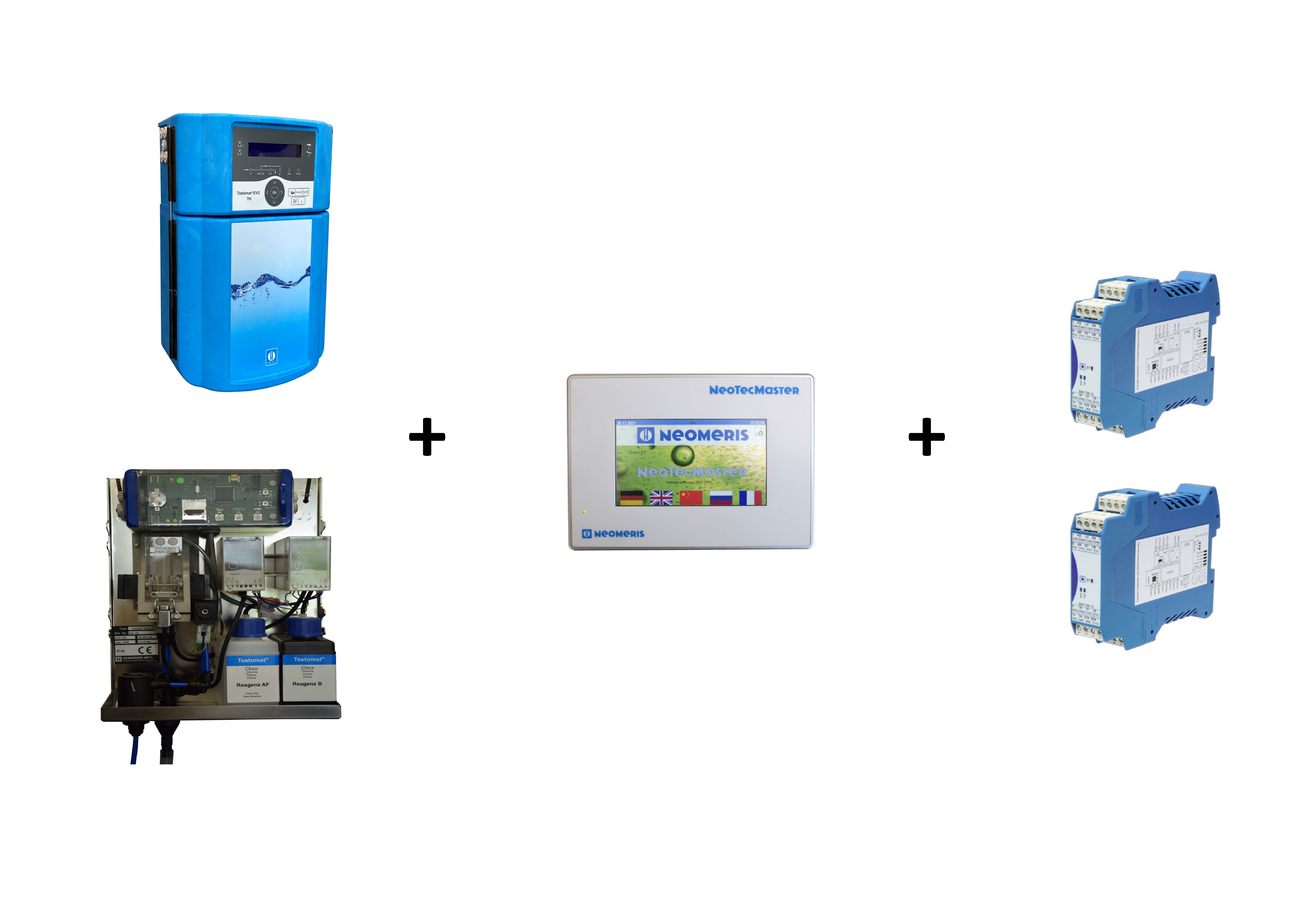

The Testomat® EVO TH automatically determines the water hardness by means of titration. The device is suitable for controlling the water quality of water treatment plants, drinking water systems, industrial boilers and for monitoring process water. On top of that our Testomat® EVO TH is approved for boiler houses | component identification no.: TÜV. WÜH. 21-025 | VdTÜV bulletin water monitoring device 100 and UL-TÜV certified. It is supplemented by the Testomat® LAB CL, a robust wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process. Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time). In view of the fact that the Testomat® LAB CL was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you the Testomat® EVO TH and the Testomat® LAB CL in combination with the NeoTecMaster®, which was specially developed by our company, as a package solution at a preferential price. The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input on the NeoTecMaster® , in this case the RS232 interface and one additional RS232 interface on the included NeoTec Slave module , are used by Testomat® EVO TH and Testomat® LAB CL to display the measured value, the trend and the status messages on the 5 inch screen. In addition to the on board RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments). The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required, thus enabling the future realisation of further control concepts in a flexible manner. A module that fundamentally expands the range of functions and is already included in the scope of delivery is our NeoTec slave relay module with which you can add potential-free relay contacts to the overall system. You can freely assign these to the incoming measurement signals and thus, for example, implement limit value-related control concepts, as well as output measurement-related messages. Further advantages of the NeoTecMaster:  Simple operation  Integration of the Testomat® world of instruments, here in conjunction with the Testomat® EVO TH and Testomat® LAB CL  Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housing  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation) Available as built-in or surface-mounted variant Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are proven Testomat® functionalities of both devices:  Optimised water detection based on an optical measuring method  RS232 interface for transmission of measured values and error messages  Import and export of settings (basic programming)  Logging of measurement data and messages/alarms via integrated SD card or optionally usable SDHC card (2GByte)  Firmware update via SD card  Integrated self-test with continuous monitoring  Automatic venting of the indicator line  Performance profil Testomat® EVO TH:  High-precision titration by means of piston metering pump  LCD graphic display Multilingual menu with easy switching (internal programming is retained) External clear / acknowledge input Free programmable password Range monitoring (fall below limit value1 / exceed limit value 2) Permitted number of lack of water, freely programmable (for systems with temporarily low water pressure) Reliable and low-maintenance operation  Minimal indicator and water consumption  Analogue output 4 - 20 mA for transmission of measured values  Programmable hardness unit in °dH, °f, ppm CaCO3, mmol/l  Collective alarm output  Indicator quantities: 100 and 500 ml bottles  Analysis trigger: automatic interval operation (0-99 minutes) depending on quantity via contact water meter Performance profil Testomat® LAB CL:  High-precision peristaltic pumps Reliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Execution of parameterisation by means of SD card or "Service Monitor" software via mini-USB (on the unit side) to USB 2.0 (e.g. PC/notebook)  Multilingual software menu in German, English, French, Dutch, Portoguese Compact design  Common alarm output Optimised reagents: Only 2 reagents for the determination of total chlorine Optimised reagent set: filling quantities are coordinated so that the reagent set is used up almost evenly Analysis triggering: Automatic interval operation (interval pause adjustable from 10-60 minutes) Measuring phase mode (start impulse triggers a sequence of analyses for a period of 10 minutes to 12 hours) External analysis input (start/stop) Hand start Optional accessories available:  OLED display for Testomat® LAB Protective cover to increase the IP protection class of the Testomat® LAB NeoTecMaster instrument cover Frequently asked questions What does this EVO TH and LAB CL system measure simultaneously? Water hardness and chlorine levels in a combined system. What advantages does the Testomat® EVO TH offer compared to other devices? It is certified and particularly suitable for boiler systems. Our Testomat® EVO TH is approved for boiler houses | Component identification number: TÜV. WÜH. 21-025 | VdTÜV leaflet water monitoring device 100 and UL-TÜV certified. How does the system support compliance with regulations? Through proven technology and reliable monitoring. Can I centrally control and monitor both devices? Yes, via the NeoTecMaster® with a shared display. How are measured values and status messages displayed? Clearly on the integrated screen. Is the system also suitable for demanding industrial processes? Yes, it is designed for complex systems. How flexible is the system for future expansions? It can be expanded modularly at any time. What makes this package particularly attractive for operators? It combines proven safety with modern control systems.

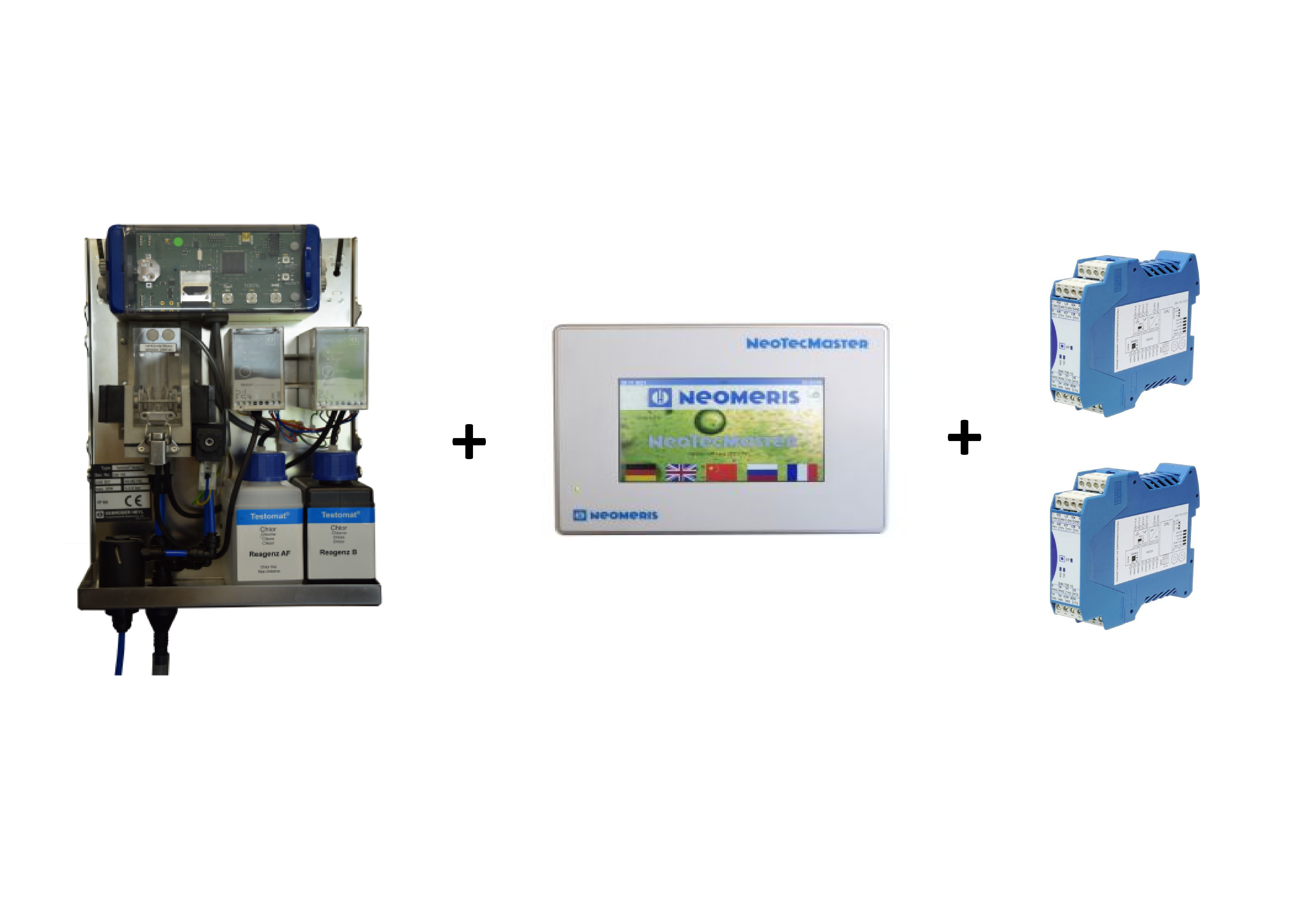

The Testomat® LAB CL is a robust wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process. Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time). In view of the fact that the Testomat® LAB CL was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you the Testomat® LAB CL in combination with the NeoTecMaster® Multi Channel Controller, which was specially developed by our company, as a package solution at a preferential price. The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input, in this case the RS232 interface, is used by the Testomat® LAB CL to display the measured value, the trend and the status messages on the 5 inch screen. In addition to the on board RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments). The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required, thus enabling the future realisation of further control concepts in a flexible manner. Two modules that fundamentally expand the range of functions and are already included in the scope of delivery are our NeoTec slave relay module and the 4x 4-20mA output module. This allows you to add potential-free relay contacts to the overall system and to realise linear or inverted dosing processes via the 4x 4-20mA output module. You can freely assign the relay contacts to the incoming measurement signals and thus, for example, also implement simple limit value-related control concepts, as well as output measurement value-related messages. Via the 4-20mA output module, you can also forward the measured values to a higher-level controller as desired.  Further advantages of the NeoTecMaster:  Simple operation  Integration of the Testomat® world of instruments, here in conjunction with the Testomat® LAB CL  Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housing  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation) Available as built-in or surface-mounted variant Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are proven Testomat® LAB functionalities: Optimised water detection based on an optical measuring method  RS232 interface for transmission of measured values and error messages  Import and export of settings (basic programming)  Logging of measurement data and messages/alarms via integrated SD card or optionally usable SDHC card (2GByte)  Firmware update via SD card  Integrated self-test with continuous monitoring  Automatic venting of the indicator line Performance profil Testomat® LAB CL:  High-precision peristaltic pumps Reliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Execution of parameterisation by means of SD card or "Service Monitor" software via mini-USB (on the unit side) to USB 2.0 (e.g. PC/notebook)  Multilingual software menu in German, English, French, Dutch, Portuguese Compact design  Common alarm output Optimised reagents: Only 2 reagents for the determination of total chlorine Optimised reagent set: filling quantities are coordinated so that the reagent set is used up almost evenly Analysis triggering: Automatic interval operation (interval pause adjustable from 10-60 minutes) Measuring phase mode (start impulse triggers a sequence of analyses for a period of 10 minutes to 12 hours) External analysis input (start/stop) Hand start Optional accessories available:  OLED display for Testomat® LAB Protective cover to increase the IP protection class of the Testomat® LAB NeoTecMaster instrument cover Frequently asked questions What exactly does this system monitor in the water? The level of free chlorine or total chlorine. How does the NeoTecMaster® help me in my operations? It collects all the data and displays it centrally. Can I control dosages with the system? Yes, processes can be adjusted via the outputs. How quickly will I receive a measurement? A result is available after a short time. How is reagent consumption optimized? The quantities are precisely calibrated. Can I adapt the system to my equipment? Yes, this is possible through modular expansions. How does the system support me in monitoring? It clearly displays values, trends, and messages. Can I share the measured values with other systems? Yes, easily done via interfaces.

The Testomat® LAB Monochloramine (NH2CL) is an online analyser that photometrically measures the content of monochloramine in process water and is used for continuous monitoring of process quality, for example in cooling circuits. Another area of application is the use in the environment of water treatment and drinking water plants, for process monitoring, as well as monitoring the decay behaviour in cooling towers after shock chlorination. The measuring range for monochloramine (NH2CL, calculated as Cl2) is 0 to 5 ppm (resolution 0.1). The instrument works according to the DPD method based on EN ISO 7393-2 and the analysis is carried out by adding two reagents. After a reaction time of approx. 60 seconds (dosing and measuring time without rinsing time) the measuring result is available.  For the transmission of the measured values, in addition to the 4-20mA signal output, an RS232 interface is available for the transmission of the measured values as well as error & status messages. Furthermore, all data are continuously recorded on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format and can be used for detailed observations at any time.  In view of the fact that the Testomat® LAB Monochloramine was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you the Testomat® LAB Monochloramine in conjunction with the NeoTecMaster® Multicontroller, which was specially developed by our company, as a package solution at a preferential price. The 4-channel NeoTecMaster® Multicontroller included in this package enables the processing of up to four measurement signals in this version. One signal input on the NeoTecMaster®, in this case the RS232 interface, is used by Testomat® LAB Monochloramine to display the measured value, the trend and the status messages on the 5 inch screen. In addition to the RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments). The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required. This allows the future realisation of further control concepts in a flexible way. Two modules which fundamentally extend the range of functions and are already included in the scope of delivery are our NeoTec slave relay module and the 4x 4-20mA output module. This allows you to add potential-free relay contacts to the overall system and to realise linear or inverted dosing processes via the 4x 4-20mA output module. You can freely assign the relay contacts to the incoming measurement signals and thus, for example, also implement simple limit value-related control concepts, as well as output measurement value-related messages. Via the 4-20mA output module, you can also forward the measured values to a higher-level controller as desired. Further advantages of the NeoTecMaster:  Simple operation Integration of the Testomat® world of instruments, here in connection with the Testomat® LAB Monochloramine  Integration into the existing control cabinet, alternatively we offer you our NeoTecMaster® housing  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation)  Available as built-in or surface-mounted variant  Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are proven Testomat® LAB functionalities:  Optimised water detection based on an optical measuring method  RS232 interface for transmission of measured values and error messages  Import and export of settings (basic programming)  Logging of measurement data and messages/alarms via integrated SD card or optionally usable SDHC card (2GByte)  Firmware update via SD card  Integrated self-test with continuous monitoring  Automatic venting of the indicator line Performance profil Testomat® LAB Monochloramine:  High-precision peristaltic pumps Reliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Execution of parameterisation by means of SD card or "Service Monitor" software via mini-USB (on the unit side) to USB 2.0 (e.g. PC/notebook)  Multilingual software menu in German, English, French, Dutch Compact design  Common alarm output Optimised reagents: Only 2 reagents for the determination of monochloramine (NH2CL) Optimised reagent set: filling quantities are coordinated so that the reagent set is used up almost evenly Analysis triggering: Automatic interval operation (interval pause adjustable from 10-60 minutes) Measuring phase mode (start impulse triggers a sequence of analyses for a period of 10 minutes to 12 hours) External analysis input (start/stop) Hand start Optional accessories available:  OLED display for Testomat® LAB Protective cover to increase the IP protection class of the Testomat® LAB NeoTecMaster instrument cover Frequently asked questions What exactly does the device measure? It measures the monochloramine content in water reliably and continuously. What areas of application is the system intended for? For cooling circuits, drinking water systems and industrial water treatment. How quickly do I get a measurement result? The result is available after about 60 seconds. Can I process or save the measured values? Yes, data is stored and can be exported. Can the system be expanded? Yes, the controller can be flexibly expanded with additional modules. Is the operation also suitable for beginners? Yes, the system is clear and easy to use.

The Testomat® LAB TH determines the water hardness (residual total hardness) fully automatically by use of titration and has been developed for monitoring the water quality of water treatment plants, drinking water plants, industrial boilers and for monitoring process water and the Testomat® LAB CL is a robust, wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process. Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time). In view of the fact that the Testomat® LAB TH and Testomat® LAB CL was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you both Testomat® LAB analysis devices in combination with the NeoTecMaster®, which was specially developed by our company, as a package solution at a preferential price. The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input on the NeoTecMaster® , in this case the RS232 interface and one additional RS232 interface on the included NeoTec Slave module , are used by Testomat® LAB TH and Testomat® LAB CL to display the measured value, the trend and the status messages on the 5 inch screen. In addition to the on board RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments). The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required, thus enabling the future realisation of further control concepts in a flexible manner. A module that fundamentally expands the range of functions and is already included in the scope of delivery is our NeoTec slave relay module with which you can add potential-free relay contacts to the overall system. You can freely assign these to the incoming measurement signals and thus, for example, implement limit value-related control concepts, as well as output measurement-related messages.  Further advantages of the NeoTecMaster:  Simple operation Integration of the Testomat® world of instruments, here in conjunction with the Testomat® LAB TH and Testomat® LAB CL  Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housing  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation) Available as built-in or surface-mounted variant Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are proven Testomat® LAB functionalities:  Optimised water detection based on an optical measuring method  RS232 interface for transmission of measured values and error messages  Import and export of settings (basic programming)  Logging of measurement data and messages/alarms via integrated SD card or optionally usable SDHC card (2GByte)  Firmware update via SD card  Execution of parameterisation by means of SD card or "Service Monitor" software via mini-USB (on the unit side) to USB 2.0 (e.g. PC/notebook)  Multilingual software menu in German, English, French, Dutch; Portuguese Integrated self-test with continuous monitoring  Automatic venting of the indicator line  Compact design  Performance profil Testomat® LAB TH:  High-precision titration by means of piston metering pump  Reliable and low-maintenance operation  Minimal indicator and water consumption  Analogue output 4 - 20 mA for transmission of measured values  Programmable hardness unit in °dH, °f, ppm CaCO3, mmol/l  Collective alarm output  Indicator quantities: 500 ml bottles  Analysis trigger:  - Automatic interval operation (interval pause adjustable from 0-255 minutes)  - External analysis input (start/stop)  - Manual start  Performance profil Testomat® LAB CL:  High-precision peristaltic pumps Reliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Common alarm output Optimised reagents: Only 2 reagents for the determination of total chlorine Optimised reagent set: filling quantities are coordinated so that the reagent set is used up almost evenly. Analysis trigger: Automatic interval operation (interval pause adjustable from 0-255 minutes) External analysis input (start/stop) Manual start  Optional accessories available:  OLED display  Protective cover to increase the IP protection class of the Testomat® LAB devices  NeoTecMaster instrument cover Frequently asked questions What values does this premium package monitor simultaneously? Water hardness and chlorine levels in a system. Why is the combination of two devices useful? It allows for more comprehensive control of water quality. How are both measurement values displayed? Central on a shared display with history. Can I evaluate both devices at the same time? Yes, all data is collected in the controller. How quickly does the chlorine device deliver results? Already after about a minute. Is the system suitable for complex monitoring? Yes, especially for several important water parameters. Can I use the system for automatic responses? Yes, it can react directly to measured values. What is the biggest advantage of this package? More overview and control over several water values at the same time.

The Testomat® LAB TH determines the water hardness (residual total hardness) fully automatically by use of titration and has been developed for monitoring the water quality of water treatment plants, drinking water plants, industrial boilers and for monitoring process water. In view of the fact that the Testomat® LAB TH was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you the Testomat® LAB TH in combination with the NeoTecMaster®, which was specially developed by our company, as a package solution at a preferential price. The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input on the NeoTecMaster®, in this case the RS232 interface, is used by Testomat® LAB TH to display the measured value, the trend and the status messages on the 5 inch screen. In addition to the RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments).  The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required, thus enabling the future realisation of further control concepts in a flexible manner. A module that fundamentally expands the range of functions and is already included in the scope of delivery is our NeoTec slave relay module with which you can add potential-free relay contacts to the overall system. You can freely assign these to the incoming measurement signals and thus, for example, implement limit value-related control concepts, as well as output measurement-related messages. Further advantages of the NeoTecMaster:  Simple operation Integration of the Testomat® world of instruments, here in conjunction with the Testomat® LAB TH  Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housing  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation) Available as built-in or surface-mounted variant Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are proven Testomat® LAB TH functionalities:  Optimised water detection based on an optical measuring method  RS232 interface for transmission of measured values and error messages  Import and export of settings (basic programming)  Logging of measurement data and messages/alarms via integrated SD card or optionally usable SDHC card (2GByte)  Firmware update via SD card  Execution of parameterisation by means of SD card or "Service Monitor" software via mini-USB (on the unit side) to USB 2.0 (e.g. PC/notebook)  Multilingual software menu in German, English, French, Dutch, Portoguese  Integrated self-test with continuous monitoring  Automatic venting of the indicator line  Compact design  Proven performance profil: High-precision titration by means of piston metering pump  Reliable and low-maintenance operation  Minimal indicator and water consumption  Analogue output 4 - 20 mA for transmission of measured values  Programmable hardness unit in °dH, °f, ppm CaCO3, mmol/l  Collective alarm output  Indicator quantities: 500 ml bottles  Analysis trigger:  - Automatic interval operation (interval pause adjustable from 0-255 minutes)  - External analysis input (start/stop)  - Manual start  Optional accessories available:  OLED display  Protective cover to increase the IP protection class of the Testomat® LAB TH  NeoTecMaster instrument cover Frequently asked questions What does the value-added package with NeoTecMaster® bring me in concrete terms? You get measurement and central control in one system. How many measurement values can the NeoTecMaster® process at the same time? Up to four measurement signals in parallel. Can I view the history of my measurements? Yes, directly on the integrated display. Can the system be expanded later? Yes, can be flexibly extended with additional modules. Can I also control processes with the system? Yes, for example, via relays for automatic reactions. How are measurement data stored and used? They are stored and can be evaluated later. Is the system suitable for complex systems? Yes, especially for networked and larger applications. What is the advantage over a single device? More control, better overview and extended control options.
