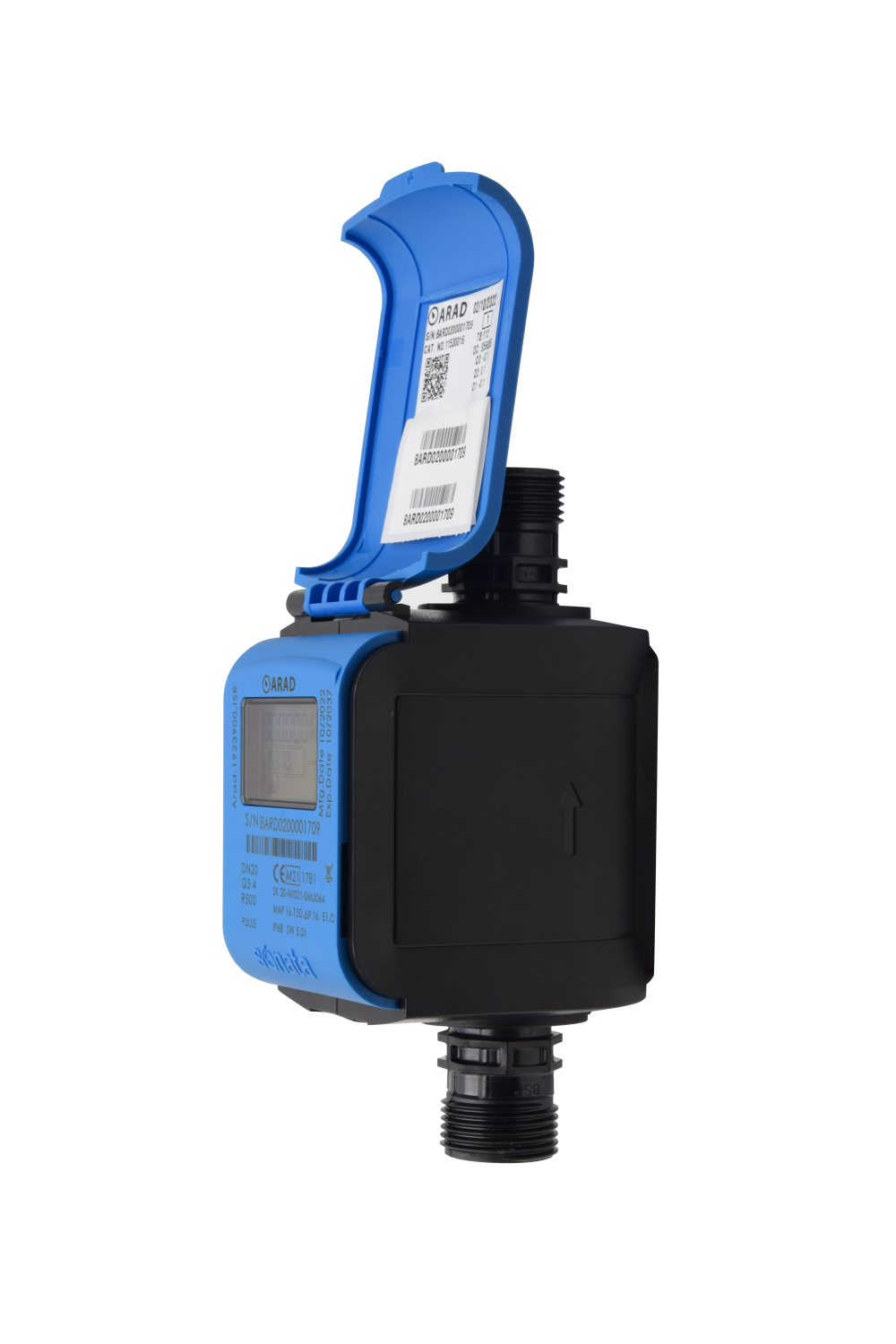

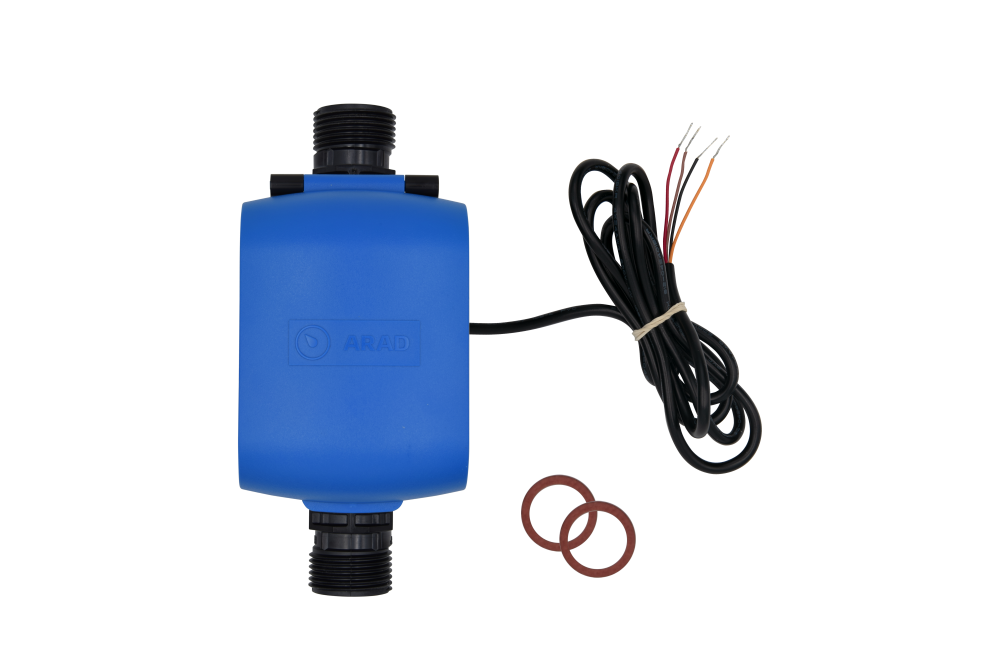

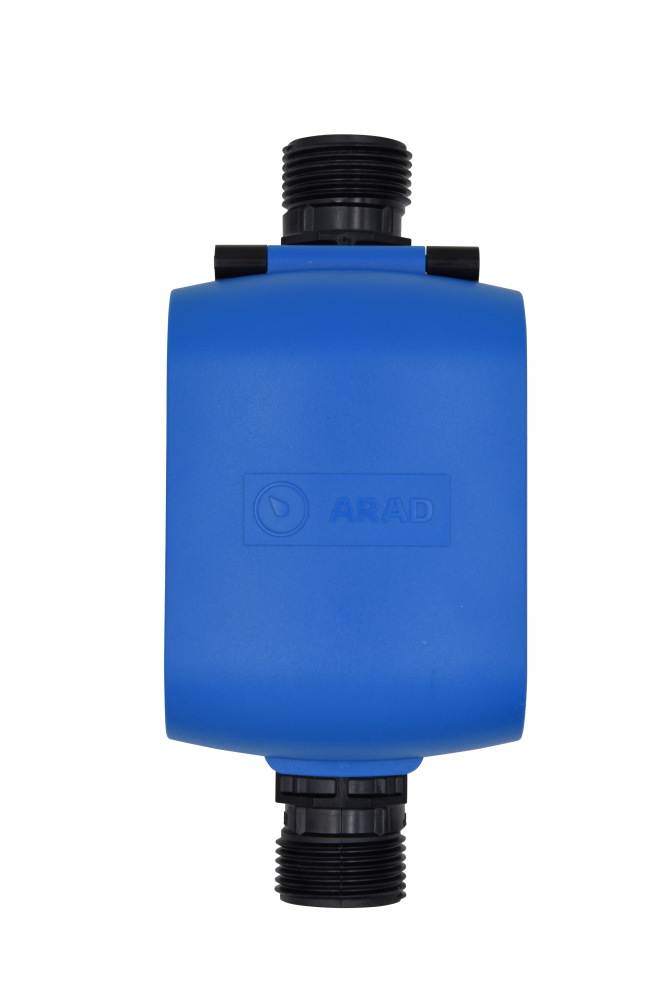

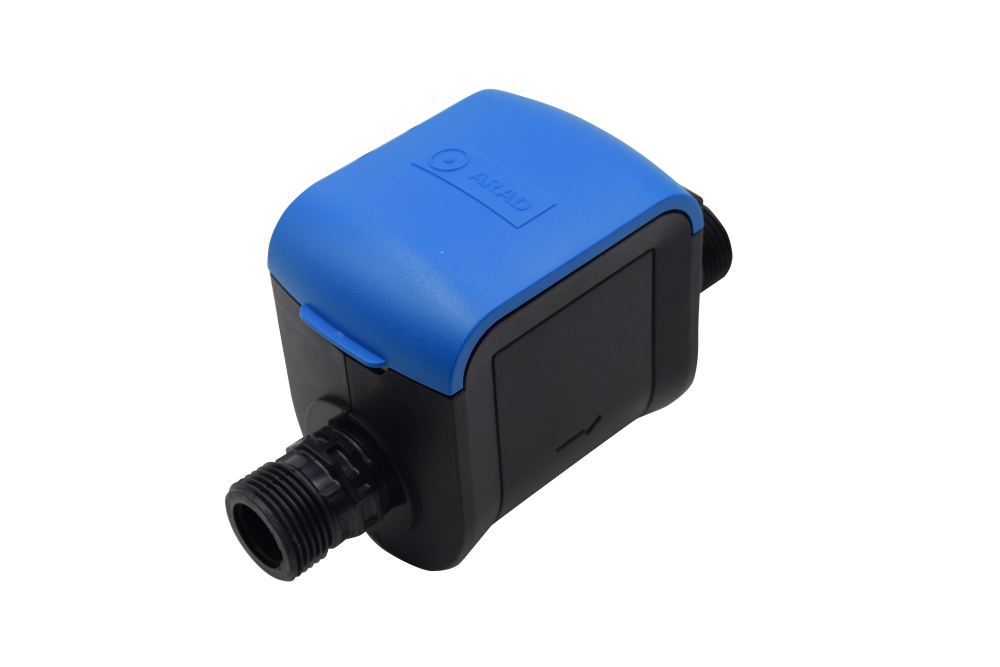

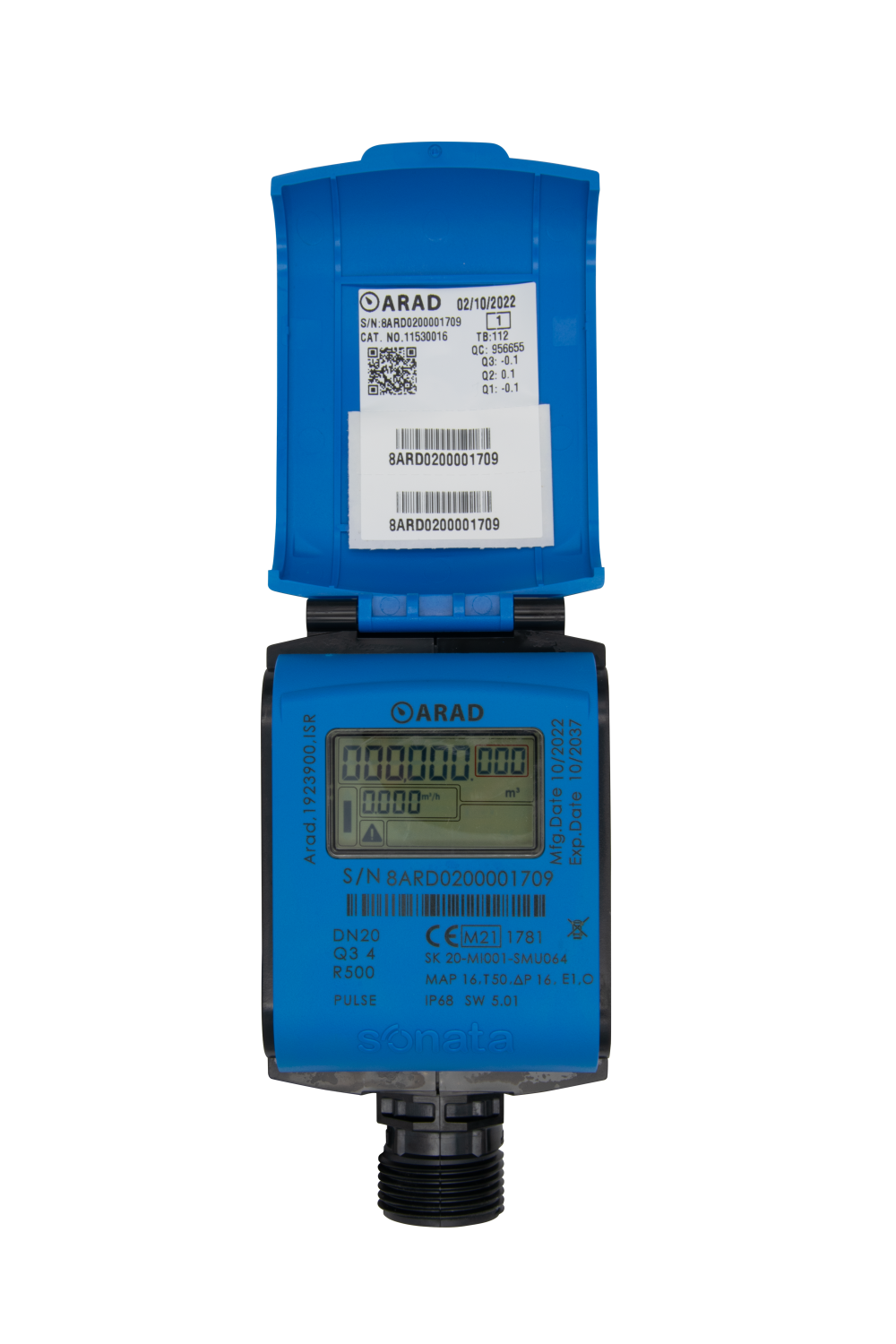

Ultrasonic water meter DN25 (1") ARAD Sonata – modern and precise water meter
This water meter can be used in various areas, such as water consumption measurement in industrial plants or in water treatment systems.
Precise consumption measurement with modern ultrasonic technology
The ARAD Sonata ultrasonic water meter in the DN25 (1 inch) version is designed for precise measurement of water consumption in larger pipelines. The ultrasonic technology enables wear-free measurement without moving parts, ensuring long-term stable and reliable operation.
Even at very low flow rates, the meter delivers accurate results. At the same time, the robust design ensures a long service life and low-maintenance operation.

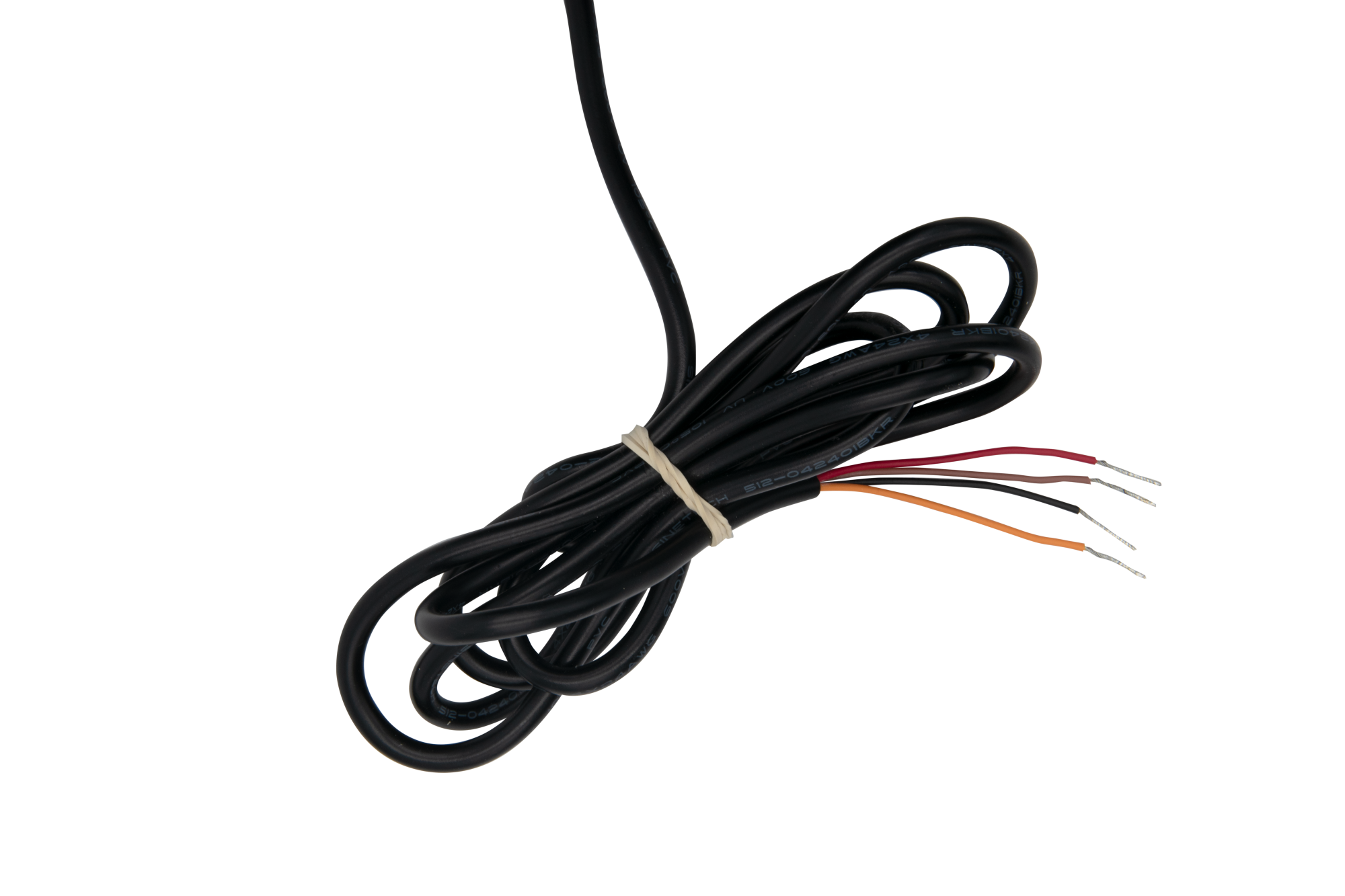

The two integrated pulse outputs can be individually configured and allow flexible integration into existing control, monitoring, or evaluation systems. They support both forward and reverse measurements as well as simultaneous output of both measurements.
Why use the ARAD Sonata water meter?
This version is particularly suitable for applications with higher flow rates or larger pipe dimensions. Thanks to precise ultrasonic measurement and flexible signal output, water consumption can be reliably recorded and further processed.
Your advantages with the ARAD Sonata
- Ultrasonic measurement without mechanical components
- High measurement accuracy even at low flow rates
- Two freely configurable pulse outputs
- Suitable for DN25 / 1" pipelines
- Low maintenance and durable due to robust design
Possible application areas of the water meter
- Water consumption measurement in industrial plants
- Process and cooling water monitoring
- Water treatment systems
- Building and system monitoring
Technical data
- Nominal size: DN 25 (1 inch)
- Measurement principle: Ultrasonic (without moving parts)
- Pulse outputs: 2 freely configurable
- Pulse resolution: e.g. 1 / 10 / 100 / 1000 liters adjustable
- Measurement direction: forward, reverse, or combined
- Application: Measurement of water consumption in pipelines
)
