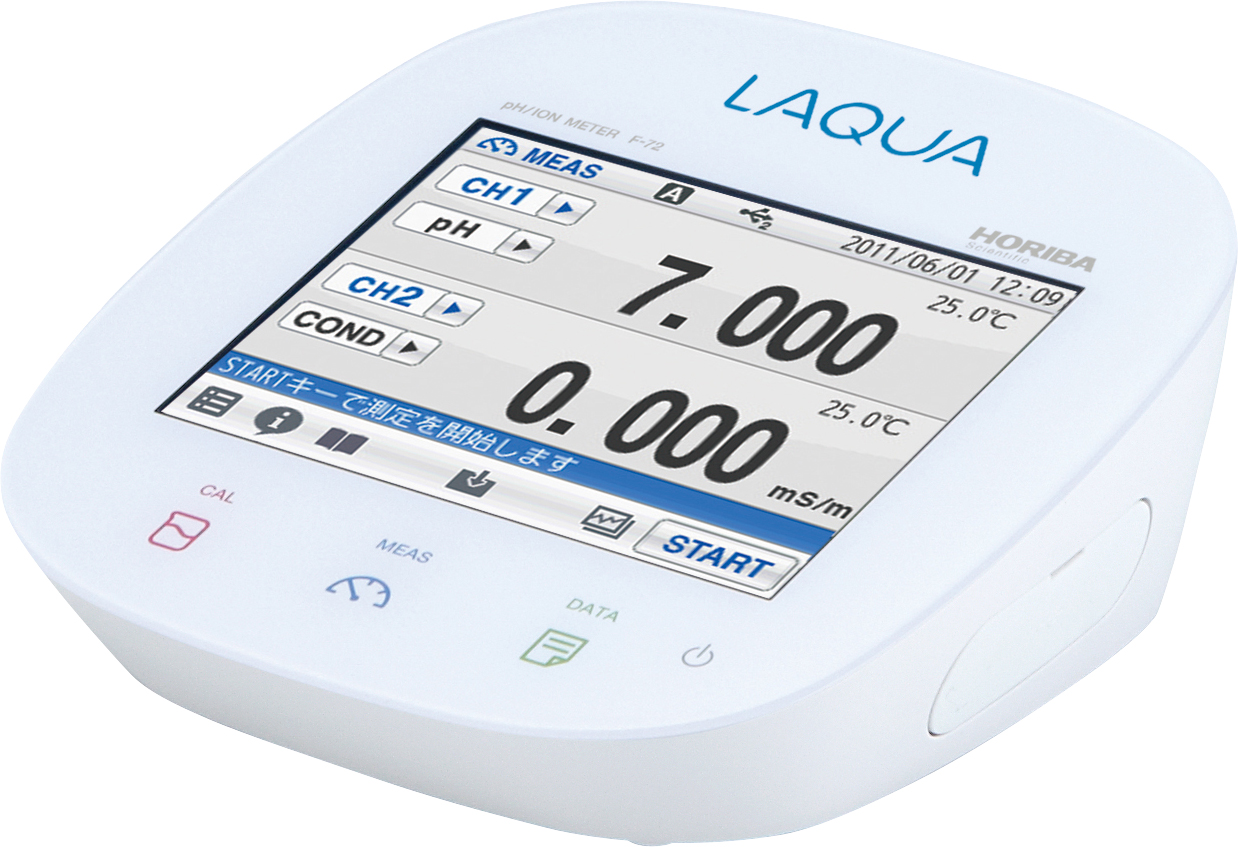

Horiba F-74 Dual Channel pH/Redox/Ion/Conductivity/Resistivity/Salinity/TDS/Temperature Lab Meter with Touchscreen
€1,400.00*
Please log in to receive your conditions.
Available in 28 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Leasing Example
29,47 €
non-binding
Monthly Rate (60 Rates)
Prices excl. VAT
Further rate options by choosing the payment method Leasing
Product information "Horiba F-74 Dual Channel pH/Redox/Ion/Conductivity/Resistivity/Salinity/TDS/Temperature Lab Meter with Touchscreen"
Multifunctional Dual-Channel Laboratory Meter for pH, Redox, Ion-Selective Parameters, and More
Professional Horiba F-74 Laboratory Device for Simultaneous Analysis of Multiple Water and Ion Parameters
The Horiba F-74 dual-channel laboratory device combines a wide range of analytical measurement methods for various parameters in a powerful system. It measures pH, redox, temperature, conductivity, resistance, salinity, TDS, and ion-selective parameters.
The device operates with two independent channels: The first channel is designed for measuring pH, ion-selective parameters, mV, and redox potential. The second channel can measure conductivity, salinity, resistance, and TDS. Automatic buffer and calibration solutions, visual stability indicators, and integrated electrode status ensure reliable and repeatable results.
This channel separation allows different parameters to be measured efficiently and simultaneously, supporting safe and convenient operation in the laboratory.
Powerful Dual-Channel System for Precise Laboratory Analysis
The Horiba F-74 is designed for laboratory environments where measurement accuracy, documentation, and process safety are crucial. Simultaneous recording of multiple parameters saves time and increases the analytical value, especially for complex samples.
Its intuitive operation makes the device suitable for both routine analyses and demanding measurement tasks in research, quality control, and industry.
Technical Highlights and Key Advantages of the Horiba F-74 Dual-Channel Laboratory Device
The laboratory meter offers numerous features that simplify daily use and support compliance with standards:
- Touchscreen color display for intuitive control and clear visualization
- Automatic buffer and calibration recognition for reliable results
- GLP/GMP compliance for regulated applications
- Data storage and PC communication for easy archiving and analysis
The combination of measurement versatility, user-friendliness, and high precision makes the Horiba F-74 an ideal solution for professional multi-parameter laboratory analyses.
Dimensions
| Height | 73 mm |
|---|---|
| Length | 17 cm |
| Width | 17,4 cm |
Weight
| Weight | 700 g |
|---|
Other attributes
| Applications | Aquaculture and Coral, Aquariums, Beer, Beverages, Environmental, Food, Hydroponics, Laboratory, Schools, Water Conditioning, Wine |
|---|---|
| Brand | Horiba |
| Country of origin | JP |
| Customs tariff number | 90278930 |
| Parameter | Ammonia Ion (NH3), Calcium Ion (Ca2+), Chloride Ion (Cl-), Combined Multiparameter, Conductivity and TDS, Fluoride Ion (F-), Nitrate Ion (NO3-), ORP, Potassium Ion (K+), Salinity, Thermometers (°C), pH |
| Quality | Professional |
Wir empfehlen Ihnen dazu
This refillable pH electrode with plastic housing and integrated temperature sensor is recommended for general use. Cable length: 2 metres Manufacturer article number: 3200393025 (9625-20D)
This refillable pH electrode with plastic housing and integrated temperature sensor is recommended for general use. Cable length: 3 metres Manufacturer article number: 3200393026 (9625-30D)
This plastic-body, refillable pH electrode with integrated temperature sensor has higher resistance and longer stability than conventional electrodes. The alkali-resistant glass membrane is suitable for strong alkali samples such as plating solutions. Manufacturer article number: 3200524120 (9632-10D)
The liquid junction of this glass-body, refillable pH electrode is located on the flat pH sensing membrane. Perfect for measuring samples in shallow containers (e.g., petri dishes) and gelatinous samples (e.g., nutrient agar). For pH measurement of meat, skin, leather, paper, leaves and cloth. Manufacturer article number:3014081807 (6261-10C)
This refillable pH electrode with integrated temperature sensor is ideal for testing samples in large containers and long test tubes (e.g., microbial culture fluids) due to its long, thin, glass-body. Electrode: 251mm length, 7mm diameterConstructed with responsive glass that is 10x stronger than JIS standardsWaterproof, Pb-free glass Manufacturer article number:3200611628 (9480-10C)
This glass-body, refillable pH electrode gives stable readings even in highly viscous samples and non-aqueous solutions (e.g., solvents, cosmetics, paints). The liquid junction is designed with a movable sleeve that prevents clogging. Easy to clean and provides quick stable readingsWaterproof, Pb-free glass Manufacturer article number:3200611631 (9481-10C)
Very durable minimum alkali errors. Most widely used for general pH measurements. Manufacturer article number:3014080432 (1066A-10C)
Uses a glass membrane highly sensitive to lowconductivity water and nonaqueous solvents. Can also be used for ordinary pH measurement. Manufacturer article number: 3014093084 (1076A-10C)
Suitable for a wide range of pH measurements since the resistance of the liquid junciton is small. Manufacturer article number: 3014080434 (2060A-10T)
Suitable for measurements of liquid other than normal aqueous solutions, such as suspensions, emulsions, paste, and non-aqueous solutions. When the potassium chloride solution of the internal solution reacts with the sample, measurements can be stably carried out by filling the sample or any other chloride solution in the external jacket. The replacement of the internal solution and the cleaning of the liquid junction can be carried out easily. Manufacturer article number: 3014080436 (2565A-10T)
Stainless made Conductivity cell is now available!This conductivity cell is tough to shock and the best choise to measure Organic Solvent as well as Ultra pure water sample by employing the stainless material for its body. Low conductivity measurements (0.01~500 µS/cm) with BNC connector.This cell can be connected with the meters which equip BNC connector e.g. 200/F-70/1500/2000 series.Flow cell is available. Manufacturer article number: 3200878882 (9371-10D)
