CINTROPUR UV2100 3/4″ + 1″
€385.00*
Please log in to receive your conditions.
Available in 5 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Product information "CINTROPUR UV2100 3/4″ + 1″"
Effective UV Disinfection for Safe Water – Chemical-Free
Physical UV-C disinfection for reliable reduction of microorganisms directly in the water system

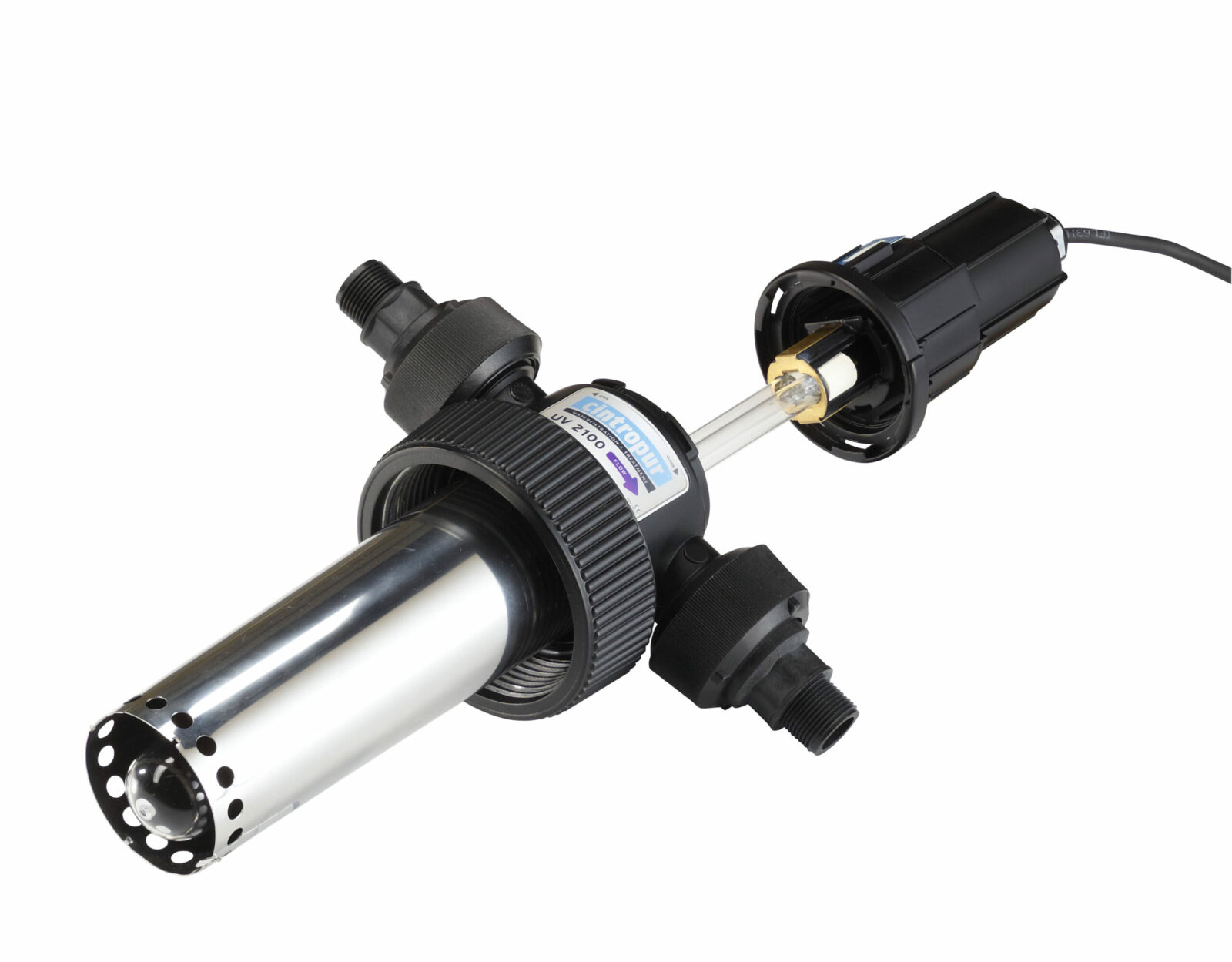

The Cintropur UV2100 uses ultraviolet (UV-C) radiation to physically remove bacteria, viruses, and microorganisms from water. UV-C light disinfects the water, preventing microbial contamination. This method works without chemical additives, leaving the taste, odor, and composition of the water unchanged.
UV disinfection occurs directly within the water system and leaves no residues or by-products. The compact unit can be flexibly integrated into pipelines with the appropriate connection sizes and is designed for low-maintenance operation.
Physical UV disinfection provides a reliable reduction of microorganisms in water without residues or chemical by-products. It is important to note that water is only considered drinking water once chemical parameters have been checked and deemed safe.
Versatile Applications of the UV Disinfection System
The CINTROPUR UV2100 is suitable for a wide range of applications requiring reliable microbial reduction in water, including:
- Pharmaceutical industry
- Food and beverage industry
- Hospitals and medical facilities
- Swimming pools and water installations
- Water management
- Animal husbandry and breeding (e.g., chickens, rabbits, ducks)
Benefits of Physical UV Disinfection with the CINTROPUR UV2100
The UV disinfection system offers several advantages over chemical methods:
- Simple and quick installation
- Purely physical disinfection using UV-C radiation
- Chemical-free natural water treatment
- No risk of overdosing
- No unpleasant taste or odor
- Effective reduction of pathogenic microorganisms
- No toxic by-products or residues
- Low maintenance requirements
Dimensions
| Height | 52 cm |
|---|---|
| Length | 14 cm |
| Width | 26 cm |
Weight
| Weight | 3 kg |
|---|
Other attributes
| Brand | Neomeris |
|---|
|
Technical data |
|||||
|
2100 (25W) |
4100 (40W) |
DUO-UV (25W) |
TRIO-UV (25W) |
TRIO-UV (40W) |
|
|
Diameter of the connection |
3/4" +1" |
||||
|
Max. flow rate (m³/h) at 25 mJ/cm² |
1,7 |
2,1 |
1,7 |
2 |
2,6 |
|
Max. operating pressure (bar) |
16 |
||||
|
Max. operating temperature (°C) |
50 |
||||
|
Weight (kg) |
1,7 |
2,8 |
1,7 |
4,3 |
|
|
Transmission value of the water |
90 |
||||
|
Lamp power (W) |
25 |
40 |
25 |
40 |
|
|
Installation diagram (see product images) |
|||||
|
A (mm) |
270 |
435 |
610 |
||
|
B (mm) |
154,5 |
320 |
487 |
||
|
C (mm) |
178 |
||||
|
D (mm) |
314 |
||||
Versions: /varies with the articles
UV system with 25W lamp
at 250J/m2 max. flow rate 28l/min.
at 400J/m2 max. flow rate 16l/min.
UV system with 40W lamp
at 250J/m2 max. flow rate 35l/min.
at 400J/m2 max. flow rate 21l/min.
UV system with 40W lamp, 25µm filter and activated carbon filter
at 250J/m2 max. flow rate 43l/min.
at 400J/m2 max. flow rate 27l/min.
