Horiba LAQUAtwin Conductivity Meter with 2 calibration points (EC-11)
€119.00*
Please log in to receive your conditions.
Available, delivery time: 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the offer.
Product information "Horiba LAQUAtwin Conductivity Meter with 2 calibration points (EC-11) "
Manufacturer Part No. 3999960125

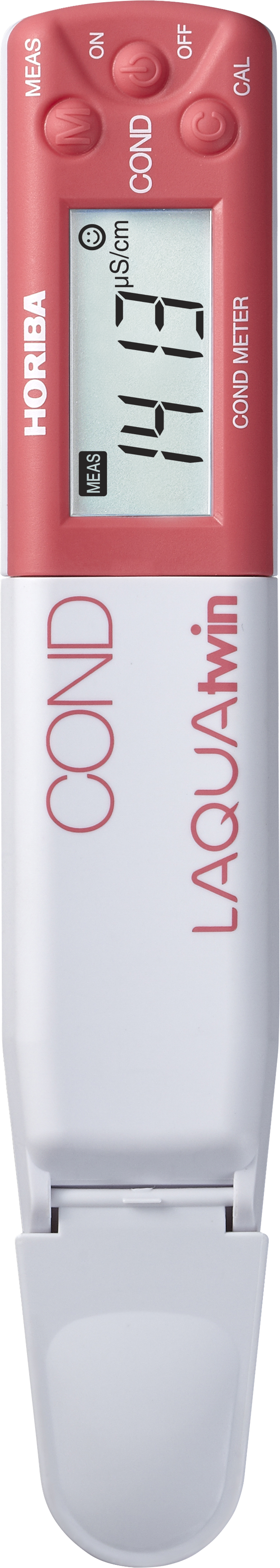

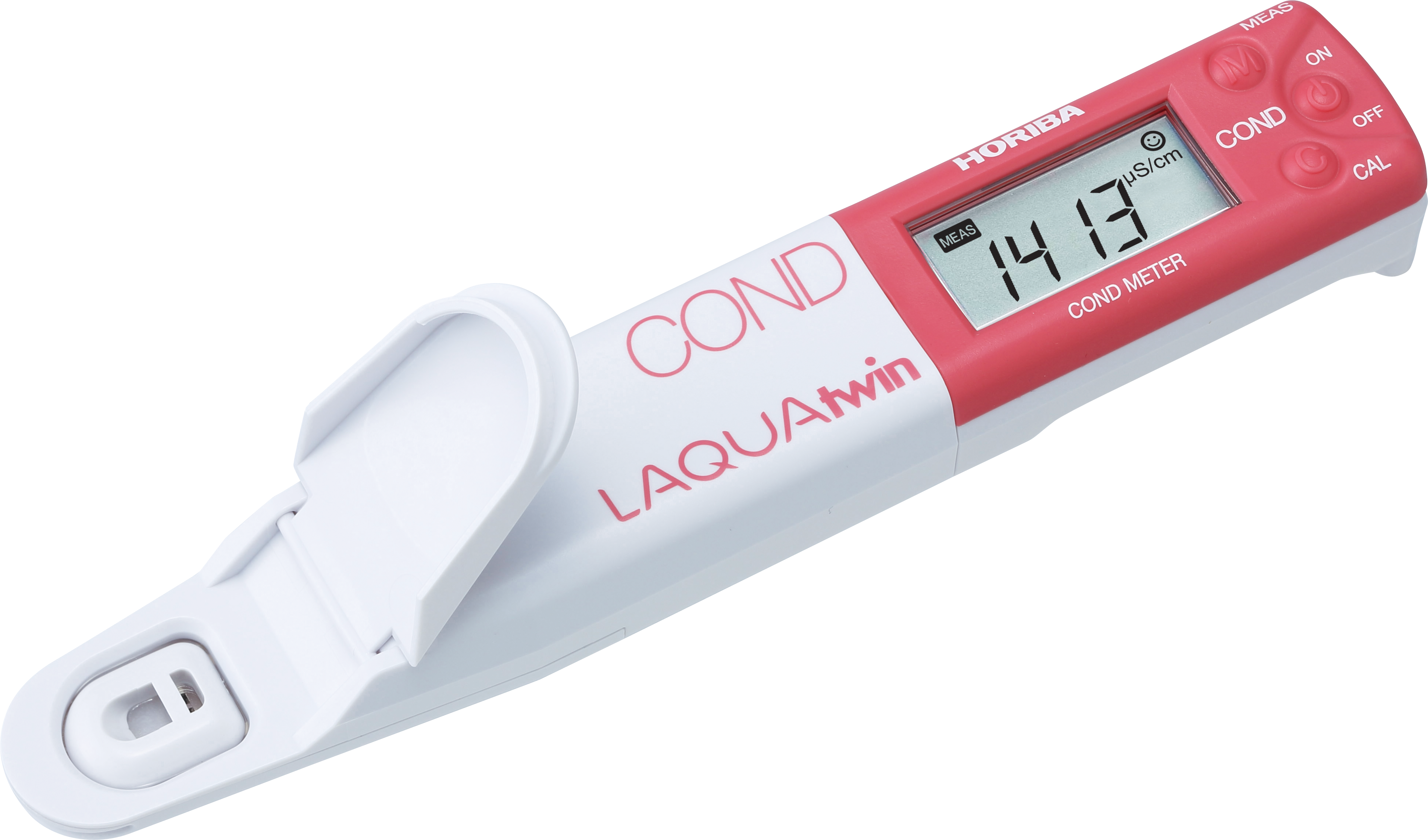

LAQUAtwin EC-11: The world's first pocket-sized conductivity meter
Your mobile laboratory - for use on site: Ideal for water quality tests in aquariums, food, beekeeping (honey) and many other applications
HORIBA's unique compact meter integrates electrode, display and sample container to enable simple, effective on-site testing by direct measurement with a single drop.
- Minimum sample volume: 0.12 ml
- Up to 2 calibration points
- Automatic range
- Automatic calibration
- Automatic standard detection: 1413µS/cm & 12.88mS/cm
- Automatic temperature compensation: 2%/ºC fixed
- Automatic stable / automatic hold measurement
- Automatic switch off: 30 min.
- Low battery indicator
- IP67 rating dust and waterproof
- Replaceable sensor
- 400 hours battery life: continuous operation without backlight
- Materials: ABS epoxy housing and titanium coating with platinum black sensor
- Display: customised (monochrome) LCD with backlight
- Operating conditions: 5 to 40°C, 85% or less relative humidity
- Warranty: 2 years - meter, 6 months - sensor

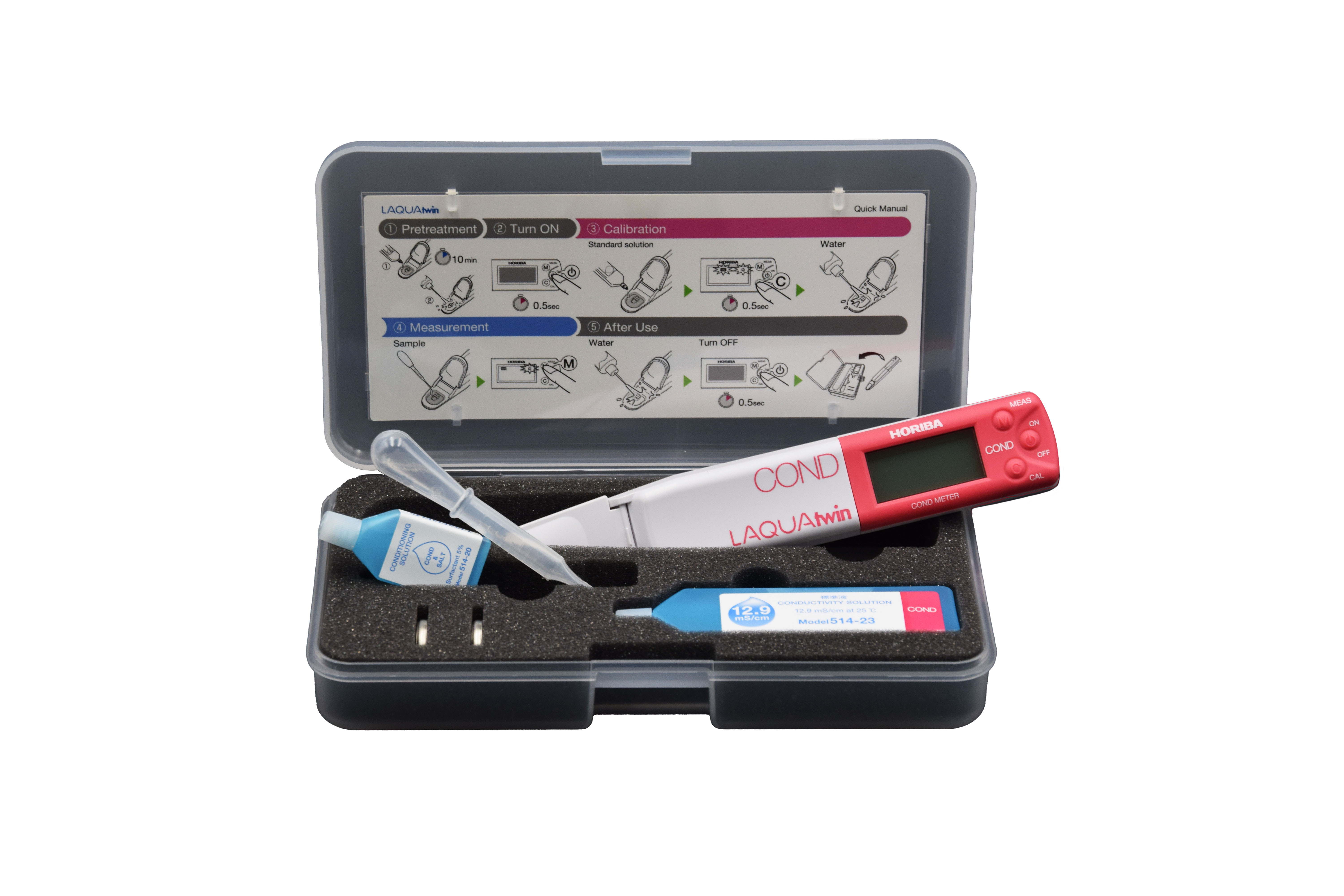

- Packed in a practical carrying case

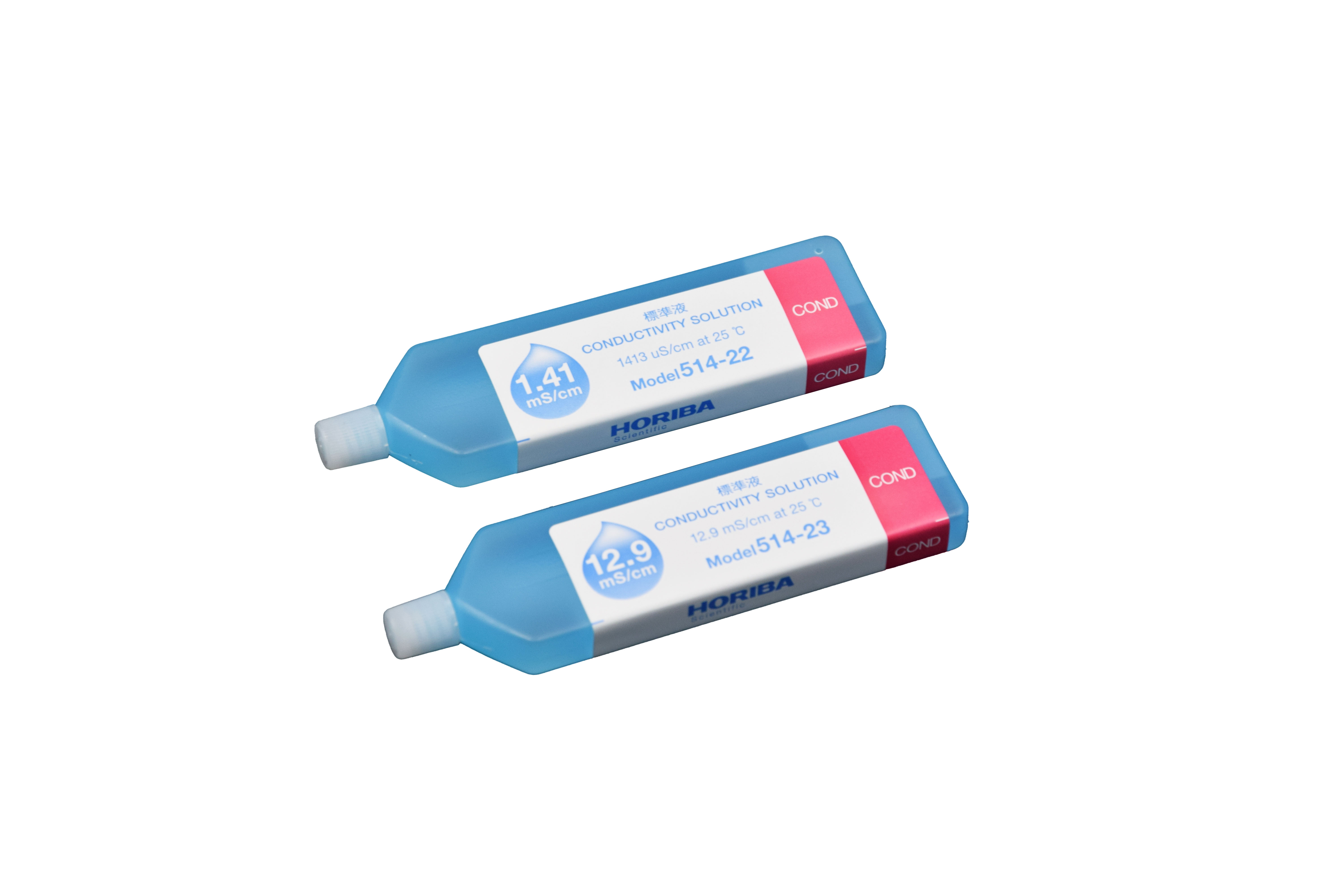

Supplied with 1413µS/cm & 12.88mScm conductivity standards (14ml each), conditioning solution (4ml), 2 x CR2032 batteries, drops, instructions and quick reference guide
Dimensions
| Height | 3,2 cm |
|---|---|
| Length | 18,5 cm |
| Width | 11 cm |
Weight
| Weight | 200 g |
|---|
Other attributes
| Applications | Aquaculture and Coral, Aquariums, Beer, Beverages, Environmental, Food, Heating, Horticulture, Hydroponics, Laboratory, Pools, Schools, Water Conditioning, Water Treatment, Wine |
|---|---|
| Brand | Horiba |
| Country of origin | JP |
| Customs tariff number | 90278930 |
| Parameter | Conductivity and TDS |
| Quality | Basic |
Downloads:
Measurement Principle: 2 Electrode Bipolar AC
- Automatic Range
- Automatic Standard Recognition
- Temperature Compensation (2%/ºC fixed)
- Auto Hold / Auto Stable
- Automatic Power Off (30 mins.)
- Low Battery Indicator
- IP67 Water / Dust Proof
- Replaceable Sensor
- 1413 μS/cm & 12.88 mS/cm Conductivity Standard Solutions (14 ml each)
- Conditioning Solution (4 ml)
- CR2032 Batteries (2)
- Dropper
- Instruction & Quick Manuals
- Small storage case
The Horiba Laquatwin conductivity tester is a compact measuring device for quickly determining the electrical conductivity (EC value) in liquids on site. In horticulture, this value is a key indicator of the nutrient supply, as it provides information on the concentration of dissolved salts - such as nitrate, potassium or magnesium - which are essential for plant growth.
Importance of conductivity in horticulture:
Electrical conductivity is closely linked to the fertilizer concentration in the irrigation water or substrate. An EC value that is too low indicates an undersupply, which can lead to deficiency symptoms and growth disorders. A value that is too high, on the other hand, can indicate overfertilization or salinization, which inhibits the plants' water uptake and can lead to damage to roots and leaves. Regular monitoring of conductivity enables precise control of the nutrient supply and therefore makes a decisive contribution to plant health and yield stability.
Accordingly, the electrical conductivity (EC value) provides information about the total concentration of dissolved salts (fertilizer salts) in a solution. In horticulture, it is decisive for:
- Nutrient control: An EC value that is too low indicates a lack of nutrients, one that is too high indicates over-fertilization - both can impair plant growth.
- Irrigation management: EC helps to detect whether irrigation water or drainage water has too high a salt concentration.
- Substrate evaluation: In soil, coco or rock wool, the EC value indicates whether the substrate is too high or low in salt.
The Laquatwin conductivity pocket tester from Horiba offers the following applications in horticulture:
- Checking the nutrient solution during irrigation:
The tester can be used directly to test irrigation water or nutrient solutions. This ensures that the plants are not over- or under-fertilized.
- Analysis of the soil or substrate extract:
With the help of distilled water, a so-called 1:2 extract can be created from soil or substrate, the conductivity of which allows conclusions to be drawn about the salt concentration in the root zone.
- Monitoring in hydroponic systems:
In hydroponic systems, monitoring the EC value is particularly important, as plants there are supplied entirely via the nutrient solution. The Laquatwin allows quick, selective measurements directly in the system.
Advantages of the Laquatwin tester:
- Compact design: Ideal for mobile use directly on site.
- Small sample quantity: Only a few drops of liquid are sufficient for a measurement.
- Fast results: A measured value is available in just a few seconds.
- Easy to clean: The sensor surface can be easily rinsed off, allowing it to be reused quickly.
Conclusion:
The Horiba Laquatwin conductivity tester is a practical tool for gardeners, nurseries, horticultural managers and hobby growers. It helps to control the nutrient supply in a targeted manner, optimize plant growth and thus optimize or increase yields.
