The pre-filter section is a filter unit consisting of a pre-filter with backwash and an activated carbon filter. It was developed for use in regions with poor water quality. Its main purpose is to protect downstream softening and osmosis systems that could be damaged by impurities in the water. Pre-filter with backwash: This filter mechanism removes coarse dirt particles and impurities from the water. The backwash technology allows the filter to be cleaned regularly, ensuring a long service life and constant performance. Activated carbon filter: The activated carbon filter removes chemical impurities, chlorine and unpleasant odours that are often found in drinking water. This additionally purifies the water and improves its quality. This pre-filter section efficiently protects your downstream systems by removing coarse particles, organic substances and chemicals. The pre-filter section is available in three different versions. Basic version Standard version Advanced version 882027 Advanced variant Pre-filtration consisting of an automatically operating backwash filter (backwash interval programmable), downstream activated carbon filter and pressure booster for the inlet to the pre-filtration. A pressure boost must be provided for line pressures < 3 bar in order to ensure a sufficiently high inlet pressure for the under-sink system.

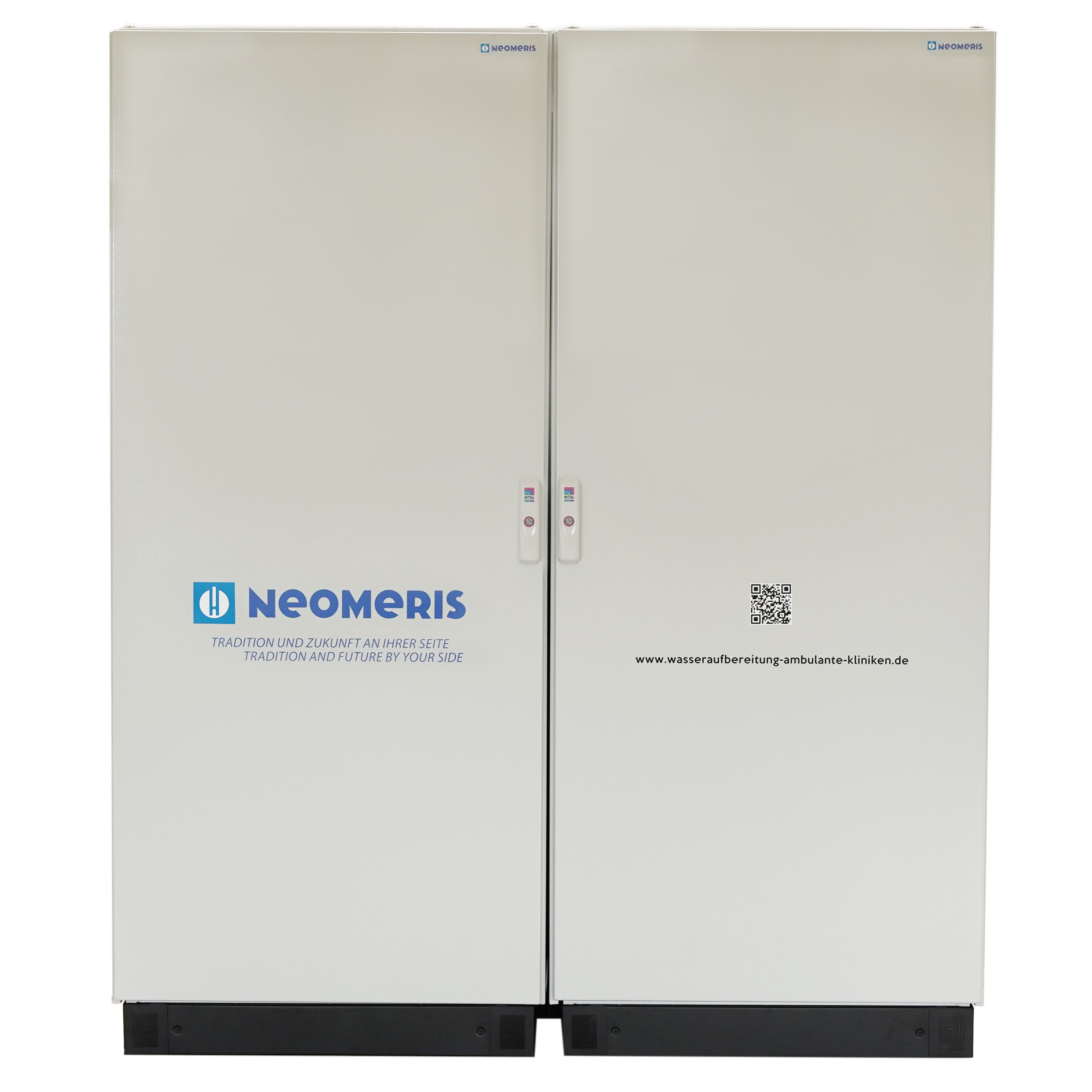

The modular water treatment system was specially developed for the outpatient care sector. While retaining the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the quantities required in different outpatient centers, as well as to the initial water quality including any treatment steps on the part of the supplier. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the treatment process of the supplier. Concept Demineralized water treatment for the outpatient sector Use of demineralized water in the outpatient sector Fully demineralized water (demineralized water) plays a central role in the outpatient medical sector, particularly in the reprocessing of medical devices, in laboratory applications and in the final rinse for mechanical instrument reprocessing. The aim is to avoid residues that could be caused by minerals, salts or other substances contained in tap water. For safe use, demineralized water must meet defined quality requirements: The conductivity must be below 0.1 µS/cm. This indicates that it contains almost no dissolved salts or ions. The silicate content must not exceed 0.4 g/l to avoid silicate deposits on medical instruments that could impair functionality or lead to hygienic risks. Only if these limit values are adhered to can residue-free and gentle reprocessing be guaranteed that meets the hygiene requirements in the outpatient sector. This is particularly relevant in dental practices, dermatology, endoscopy and in outpatient operating theatres, where deionized water is used for final rinsing or for steam generators in sterilization processes, among other things. The components used are listed below: Cabinet System separator Filter system (pre-filter & activated carbon filter) Softening system Reverse osmosis system Permeate tank 100 liters (volume can be adjusted) Pressure boosting station Two-stage mixed bed UV system (optional) Pyrogen filter (optional) Ring line in front of the mixing bed if the consumers are not removed to prevent contamination Brine lifting system (optional) Testomat 808 SIO2 (silicate measurement) Conductivity measurement NeoTecMaster (optional) Performance of the system Depending on the design of the system, 90 l, 150 l, 230 l or 300 l deionized water can be produced per hour. The capacity of the permeate tank can be adjusted, but must be positioned outside the cabinet due to the larger dimensions including the pressure booster station from a capacity of > 150 l/ (depending on the application). Shut-off via system separator The installation of a system separator is mandatory to protect the drinking water network from contamination by treated water or changes to the natural composition of the drinking water fed in due to its technical treatment. The system has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection. Aqua-Stop (solenoid valve shut-off) An Aqua-Stop is a safety mechanism used in water supply systems to stop or limit the flow of water if a fault or leakage occurs. The Aqua-Stop is located directly behind the main water connection of the system as the first element. The associated solenoid valve is coupled with two sensors, one of which is integrated in the bottom tray of the cabinet and the second is located outside at the level of the tank and the pressure booster station. Filter The pre-filter section is a filter unit consisting of a pre-filter and an activated carbon filter. Its main purpose is to protect downstream softening and osmosis systems that could be damaged by impurities in the water. Water softener The water softener removes the hardness constituents (calcium and magnesium) from the drinking water and replaces them with sodium. The function is based on an ion exchange process and ensures that the reverse osmosis membranes are reliably protected against clogging. Reverse osmosis In reverse osmosis, the natural osmotic process is reversed. The softened water is pumped through a membrane under pressure, whereby the membrane only allows water molecules and very small molecules to pass through and retains larger particles such as salts, bacteria, fours and other impurities. The installed reverse osmosis has a retention rate of approx. 98% in relation to all substances dissolved in the water. Permeate tank The built-in round tank offers advantages in terms of stability, cleaning and space requirements. The uniform shape ensures that the water is treated and stored efficiently. The optimized tank geometry prevents the potential growth of microbiological contamination and thus meets the high requirements for media purity to a greater extent. Pressure booster station The pressure booster station ensures that the connected consumers are supplied with the required operating pressure and flow rate. This enables an optimized and needs-based media supply. Mixing bed The two-stage mixing bed (connected in series) is a so-called pole mixer. Due to the special composition of the resin contained in the cartridges, all dissolved substances remaining in the water are reliably removed. The resin used is highly effective against silicates, which have a particularly negative impact on the reprocessing of medical products. The mixing bed is also the first stage of the recirculation process when using the optionally available buffer tank system. Pyrogen filter A pyrogen filter is a special type of filter used in water treatment to remove pyrogens from the water. Pyrogens are substances that can cause an immunological reaction in the body, in particular an increase in body temperature. These are usually endotoxins that are released by bacteria such as Escherichia coli (E. coli). Water disinfection by UV irradiation The development of water disinfection using UV radiation has made considerable progress in recent years due to its simplicity and efficiency. The UV-C rays generated, which are significantly more intense than sunlight, are therefore used to disinfect water in order to counteract water contamination. They enable the removal of legionella, microbes, bacteria, viruses and protozoa while respecting the environment. Testomat® 808 SiO2 silicate measuring device A Testomat®808 SiO2 silicate is used for permanent silicate monitoring. The Testomat®808 SiO2 is a measuring instrument that is used to determine the silicate content in water. The use of the Testomat 808®SiO2 ensures reliable compliance with the limit value for SiO2 of 0.4 mg/l recommended by the DGSV and AKI. Conductivity measurement Continuous monitoring of conductivity in the range of 0-10 μS/cm on the second mixing bed. For the reprocessing of medical devices, a conductivity of <1 µS/cm is recommended for the water used for the cleaning & disinfection and sterilization process. The conductivity measurement used continuously monitors whether the conductivity falls below this value. NeoTecMaster® 5 inch with housing Data acquisition, visualization and processing are just some of the relevant topics in the field of modern water treatment. The networking of different measuring systems and their integration into process automation is an elementary component here. The NeoTecMaster® was specially developed for this task and is a manufacturer-independent multi-parameter system. Cabinet systems Only a minimum footprint of 1.60 m x 1 m is required for installation. The module consists of 2 cabinets, each 80 cm wide and 60 cm deep. It is possible to work with double hinged doors, resulting in a room depth of 1m due to the depth of 60cm and a double hinged door with a dimension of 40cm. The cabinets used are made of sturdy sheet steel modules and have a high-quality surface coating. Viewing window Viewing windows are installed in Rittal enclosures to provide an overview of the measurement technology. The use of viewing windows in Rittal enclosure systems has several advantages. They enable a visual inspection of the devices in the enclosure without having to open the enclosure. This facilitates the monitoring, maintenance and troubleshooting of components without compromising the integrity of the enclosure. The viewing windows are usually made of a transparent material such as glass. Notes: Viewing windows in Rittal enclosures are only available for single-leaf doors. If this option is selected, please note that the required minimum room depth increases from 100 cm to 140 cm.Abwasser Abführung über Solehebeanlage (optional) As an optional component, the treatment plant can be extended to include an integrated wastewater lifting unit, which pumps the generated and collected wastewater into the sewer system. The main wastewater volume flows here are the wastewater from the regeneration of the softening system and the concentrate from the reverse osmosis. Collecting tray The integrated drip tray is used to detect leaks and is therefore a safety device part of the cabinet systems.The optional components of the system:Viewing windowLighting

The modular water treatment system was specially developed for the outpatient care sector. While retaining the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the quantities required in different outpatient centers, as well as to the initial water quality including any treatment steps on the part of the supplier. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the treatment process of the supplier. Concept Demineralized water treatment for the outpatient sector Use of demineralized water in the outpatient sector Fully demineralized water (demineralized water) plays a central role in the outpatient medical sector, particularly in the reprocessing of medical devices, in laboratory applications and in the final rinse for mechanical instrument reprocessing. The aim is to avoid residues that could be caused by minerals, salts or other substances contained in tap water. For safe use, demineralized water must meet defined quality requirements: The conductivity must be below 0.1 µS/cm. This indicates that it contains almost no dissolved salts or ions. The silicate content must not exceed 0.4 g/l to avoid silicate deposits on medical instruments that could impair functionality or lead to hygienic risks. Only if these limit values are adhered to can residue-free and gentle reprocessing be guaranteed that meets the hygiene requirements in the outpatient sector. This is particularly relevant in dental practices, dermatology, endoscopy and in outpatient operating theatres, where deionized water is used for final rinsing or for steam generators in sterilization processes, among other things. The components used are listed below: Cabinet System separator Filter system (pre-filter & activated carbon filter) Softening system Reverse osmosis system Permeate tank 100 liters (volume can be adjusted) Pressure boosting station Two-stage mixed bed UV system (optional) Pyrogen filter (optional) Ring line in front of the mixing bed if the consumers are not removed to prevent contamination Brine lifting system (optional) Testomat 808 SIO2 (silicate measurement) Conductivity measurement NeoTecMaster (optional) Performance of the system Depending on the design of the system, 90 l, 150 l, 230 l or 300 l deionized water can be produced per hour. The capacity of the permeate tank can be adjusted, but must be positioned outside the cabinet due to the larger dimensions including the pressure booster station from a capacity of > 150 l/ (depending on the application). Shut-off via system separator The installation of a system separator is mandatory to protect the drinking water network from contamination by treated water or changes to the natural composition of the drinking water fed in due to its technical treatment. The system has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection. Aqua-Stop (solenoid valve shut-off) An Aqua-Stop is a safety mechanism used in water supply systems to stop or limit the flow of water if a fault or leakage occurs. The Aqua-Stop is located directly behind the main water connection of the system as the first element. The associated solenoid valve is coupled with two sensors, one of which is integrated in the bottom tray of the cabinet and the second is located outside at the level of the tank and the pressure booster station. Filter The pre-filter section is a filter unit consisting of a pre-filter and an activated carbon filter. Its main purpose is to protect downstream softening and osmosis systems that could be damaged by impurities in the water. Water softener The water softener removes the hardness constituents (calcium and magnesium) from the drinking water and replaces them with sodium. The function is based on an ion exchange process and ensures that the reverse osmosis membranes are reliably protected against clogging. Reverse osmosis In reverse osmosis, the natural osmotic process is reversed. The softened water is pumped through a membrane under pressure, whereby the membrane only allows water molecules and very small molecules to pass through and retains larger particles such as salts, bacteria, fours and other impurities. The installed reverse osmosis has a retention rate of approx. 98% in relation to all substances dissolved in the water. Permeate tank The built-in round tank offers advantages in terms of stability, cleaning and space requirements. The uniform shape ensures that the water is treated and stored efficiently. The optimized tank geometry prevents the potential growth of microbiological contamination and thus meets the high requirements for media purity to a greater extent. Pressure booster station The pressure booster station ensures that the connected consumers are supplied with the required operating pressure and flow rate. This enables an optimized and needs-based media supply. Mixing bed The two-stage mixing bed (connected in series) is a so-called pole mixer. Due to the special composition of the resin contained in the cartridges, all dissolved substances remaining in the water are reliably removed. The resin used is highly effective against silicates, which have a particularly negative impact on the reprocessing of medical products. The mixing bed is also the first stage of the recirculation process when using the optionally available buffer tank system. Pyrogen filter A pyrogen filter is a special type of filter used in water treatment to remove pyrogens from the water. Pyrogens are substances that can cause an immunological reaction in the body, in particular an increase in body temperature. These are usually endotoxins that are released by bacteria such as Escherichia coli (E. coli). Water disinfection by UV irradiation The development of water disinfection using UV radiation has made considerable progress in recent years due to its simplicity and efficiency. The UV-C rays generated, which are significantly more intense than sunlight, are therefore used to disinfect water in order to counteract water contamination. They enable the removal of legionella, microbes, bacteria, viruses and protozoa while respecting the environment. Testomat® 808 SiO2 silicate measuring device A Testomat®808 SiO2 silicate is used for permanent silicate monitoring. The Testomat®808 SiO2 is a measuring instrument that is used to determine the silicate content in water. The use of the Testomat 808®SiO2 ensures reliable compliance with the limit value for SiO2 of 0.4 mg/l recommended by the DGSV and AKI. Conductivity measurement Continuous monitoring of conductivity in the range of 0-10 μS/cm on the second mixing bed. For the reprocessing of medical devices, a conductivity of <1 µS/cm is recommended for the water used for the cleaning & disinfection and sterilization process. The conductivity measurement used continuously monitors whether the conductivity falls below this value. NeoTecMaster® 5 inch with housing Data acquisition, visualization and processing are just some of the relevant topics in the field of modern water treatment. The networking of different measuring systems and their integration into process automation is an elementary component here. The NeoTecMaster® was specially developed for this task and is a manufacturer-independent multi-parameter system. Cabinet systems Only a minimum footprint of 1.60 m x 1 m is required for installation. The module consists of 2 cabinets, each 80 cm wide and 60 cm deep. It is possible to work with double hinged doors, resulting in a room depth of 1m due to the depth of 60cm and a double hinged door with a dimension of 40cm. The cabinets used are made of sturdy sheet steel modules and have a high-quality surface coating. Viewing window Viewing windows are installed in Rittal enclosures to provide an overview of the measurement technology. The use of viewing windows in Rittal enclosure systems has several advantages. They enable a visual inspection of the devices in the enclosure without having to open the enclosure. This facilitates the monitoring, maintenance and troubleshooting of components without compromising the integrity of the enclosure. The viewing windows are usually made of a transparent material such as glass. Notes: Viewing windows in Rittal enclosures are only available for single-leaf doors. If this option is selected, please note that the required minimum room depth increases from 100 cm to 140 cm.Abwasser Abführung über Solehebeanlage (optional) As an optional component, the treatment plant can be extended to include an integrated wastewater lifting unit, which pumps the generated and collected wastewater into the sewer system. The main wastewater volume flows here are the wastewater from the regeneration of the softening system and the concentrate from the reverse osmosis. Collecting tray The integrated drip tray is used to detect leaks and is therefore a safety device part of the cabinet systems.The optional components of the system:Viewing windowLighting

Under-sink system– Compact Solutions for Pure Water Quality Undercounter systems are space-saving, efficient water treatment solutions designed for discreet installation beneath work surfaces. They are indispensable in sensitive environments such as medical technology, laboratory furniture, dental clinics, and the MedTec industry. These systems reliably deliver purified water – demineralized (DI) water – exactly where it's needed. Advantages of Under-sink system: Compact design for integration into furniture and workspaces Easy to incorporate into existing supply systems Reliable multi-stage water purification Hygienic dispensing options for medical applications Example from the HeylNeomeris Range: NeoPureMini – Multi-Stage Under-sink Diluat System Pre-assembled on a stable frame and ready to connect, the NeoPureMini is ideal for installation under lab benches, in dental offices, or in medical furniture modules. With multi-stage filtration (including activated carbon, fine filtration, and optional UV stage), it provides high-purity DI water for stringent hygiene requirements in the sterilization of medical instruments in outpatient centers, operating rooms, and clinics.

The pre-filter section is a filter unit consisting of a pre-filter with backwash and an activated carbon filter. It was developed for use in regions with poor water quality. Its main purpose is to protect downstream softening and osmosis systems that could be damaged by impurities in the water. Pre-filter with backwash: This filter mechanism removes coarse dirt particles and impurities from the water. The backwash technology allows the filter to be cleaned regularly, ensuring a long service life and constant performance. Activated carbon filter: The activated carbon filter removes chemical impurities, chlorine and unpleasant odours that are often found in drinking water. This additionally purifies the water and improves its quality. This pre-filter section efficiently protects your downstream systems by removing coarse particles, organic substances and chemicals. The pre-filter section is available in three different versions. Basic version Standard version Advanced version 882025 Basic version Pre-filtration consisting of a manually operated backwash filter and downstream activated carbon filter.

The pre-filter section is a filter unit consisting of a pre-filter with backwash and an activated carbon filter. It was developed for use in regions with poor water quality. Its main purpose is to protect downstream softening and osmosis systems that could be damaged by impurities in the water. Pre-filter with backwash: This filter mechanism removes coarse dirt particles and impurities from the water. The backwash technology allows the filter to be cleaned regularly, ensuring a long service life and constant performance. Activated carbon filter: The activated carbon filter removes chemical impurities, chlorine and unpleasant odours that are often found in drinking water. This additionally purifies the water and improves its quality. This pre-filter section efficiently protects your downstream systems by removing coarse particles, organic substances and chemicals. The pre-filter section is available in three different versions. Basic version Standard version Advanced version 882026 Standard version Pre-filtration consisting of an automatically operating backwash filter (backwash interval programmable) and downstream activated carbon filter.

The pressure booster line for under-sink systems has the task of providing the required amount of water at sufficient pressure for the connected consumers. These consumers include container washing systems, cleaning and disinfection devices and sterilisers. Boosting the pressure ensures that these devices are constantly supplied with the required amount of water, while at the same time optimising the pressure ratios to meet the demand. Another important aspect of the pressure booster line is the circulation of the treated water. If no demineralised water is withdrawn by the appliances, the treated water is returned from the tank and fed to the mixing bed. This continuous circulation prevents contamination of the demineralised water, as it is always in motion and cannot stagnate. This means that the high water quality is always guaranteed. The standard version of the pressure booster station consists of a 100 litre round tank with a water lock and a sterile filter. Replenishment of the demineralised water is ensured by an integrated fill level sensor. If the fill level falls below the defined minimum fill level, demineralised water production starts automatically and is stopped when the set maximum fill level is reached. Larger tank volumes are available on request.

The pressure booster line for under-sink systems has the task of providing the required amount of water at sufficient pressure for the connected consumers. These consumers include container washing systems, cleaning and disinfection devices and sterilisers. Boosting the pressure ensures that these devices are constantly supplied with the required water, while at the same time optimising the pressure ratios to meet the demand. Another important aspect of the pressure booster line is the circulation of the treated water. If no demineralised water is withdrawn by the appliances, the treated water is returned from the tank and fed to the mixing bed. This continuous circulation prevents contamination of the demineralised water, as it is always in motion and cannot stagnate. This means that the high water quality is always guaranteed. The standard version of the pressure booster station consists of a 60 litre round tank with a water lock and a sterile filter. Replenishment of the demineralised water is ensured by an integrated fill level sensor. If the fill level falls below the defined minimum fill level, demineralised water production starts automatically and is stopped when the set maximum fill level is reached. Larger tank volumes are available on request.
